Applied Biosystems MiniAmp Plus Thermal Cycler
The ABI MiniAmp Plus Thermal Cycler is a sleek, intuitive, and reliable PCR system in a bench space-friendly frame. This digital touchscreen thermocycler is cloud-enabled, so users can access their systems remotely to tailor their protocols on the move whenever they need it through Thermo Fisher Connect from either a desktop or mobile device. This PCR machine is also convenient to place; at just 7.5 inches wide, you can keep it nearby for added convenience.
The MiniAmp thermal cyclers have a large, easy-to-use, full-color touch control and microprocessor system that guides users through protocol setup. Users may transfer protocols to a USB for added storage and loading capabilities or store them onboard with an instrument memory of around 2000 Mb. These Miniamp thermal cyclers work with a 96-Well, 0.2 mL VeriFlex block, allowing users to process from 10-100 μL. The MiniAmp Plus is outfitted with the VeriFlex block, which offers three independent temperature zones that will enable PCR optimization, while the MiniAmp comes with an isothermal block for uniform temperature. The temperature range is 0-100°C with a maximum sample ramp rate of 2.7°C/ second and a block ramp of 3.5°C/sec. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Specifications
Specifications
ABI MiniAmp Thermal Cycler Specifications:
Block Configuration | 96-well, 3 zone VeriFlex block (MiniAmp Plus)
96-well Isothermal Uniform Block (MiniAmp) |
Capacity | 1 x 96-well, 0.2 mL |
Max Block Ramp Rate | 3.0°C/Sec (MiniAmp model)
3.5°C/Sec (MiniAmp Plus model) |
Max Sample Ramp Rate | 2.7°C/Sec |
Temperature accuracy | ±0.25°C (35–99.9°C) |
Temperature range | 0–100.0°C |
Temperature uniformity | <0.5°C (30 sec after reaching 95°C) |
Instrument memory | 2,000 MB onboard memory (capacity for >1,000 protocols); USB port for additional external storage |
Dimensions | 7.9 x 7.5 x 15.4 in |
Weight | 19 lbs |
Power | 100-240v, 50/60hz, 500W |
Included
Included
Included with this PCR system
Please see individual SKU’s for a complete list of included items.
Notes
Notes
Technical Notes
This Thermal Cycler has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

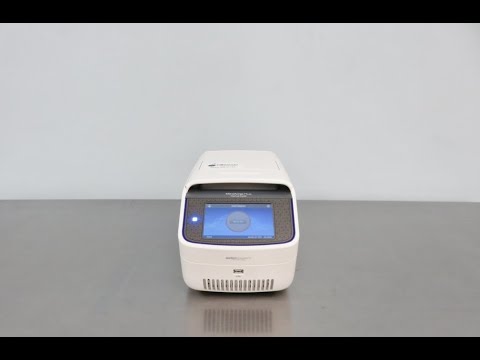

Applied Biosystems MiniAmp Thermal Cycler Video
