Agilent 3100 Offgel Fractionator
The Agilent 3100 OFFGEL fractionator provides robust, repeatable in-solution fraction recovery that ensures LC/MS assays are optimized for the maximum number of proteins. This advanced fractionator features a user-friendly interface and can connect to a PC or be operated from a smart phone when connected to a LAN. The Agilent 3100 can run two fractionations simultaneously with up to 16 samples (8 samples per tray), even with different concentrations. The OFFGEL uses electrophoresis to separate proteins or peptides according to their isoelectric points, and then collects them in their liquid phase for excellent pI-based fractionation with 0.1 – 0.6 pH resolution. This fractionator operates in 4 modes, constant voltage, constant current, constant power and timetable programable mode, with individual current control for each sample. The Agilent 3100 OFFGEL fractionator has a 50 µg to 5 mg load capacity for analytical applications or maximum enrichment of low abundance proteins.
Specifications
Specifications
Specifications of Agilent 3100 Offgel Fractionator
| Platform temperature: | Range: 10 – 35 °C
Max. 10 °C below ambient Non condensing |
| Power supplies: | 2 independent high voltage power supplies Voltage range: 0.5–10kV
Current range: 0-150 uA/ strip Power: 0-1 W/strip |
| Modes: | Constant voltage
Constant current Constant power Timetable programable (Individual current control for each sample) |
| Fractionation capacity: | 2 x 8 samples (12 or 24 fractions) in OFFGEL mode and IPG-IEF (in gel) on 2 individual trays |
| Resolution: | 0.1 – 0.6 pH units between neighboring fractions, depending on kit used |
| Loading capacity: | 50 µg – 5 mg of total protein or peptide amount per sample |
| Dimensions | 14 x 18 x 7 “ |
| Weight | 28 lbs |
| Power | 100-240V, 50/60 Hz, 140va |
Included
Included
Included with Agilent 3100 Offgel Fractionator
- Laptop Running Agilent OFFGEL and LabAdvisor
- Gameboy Controller
- Operator’s Guide
- 115V Power Cord
- 30-Day Warranty
Notes
Notes
Notes on Agilent 3100 Offgel Fractionator
Agilent offgel has been fully tested by our service team with a clean bill of health.
Video
Video

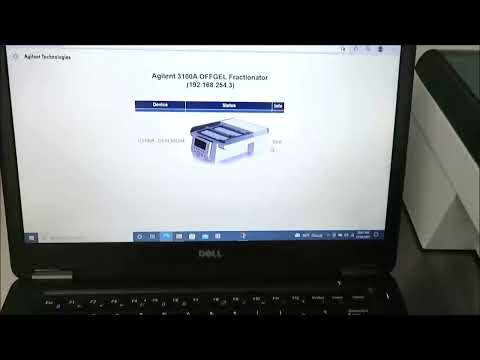

Video of Agilent 3100 Offgel Fractionator
ID 14287
Agilent 3100 Offgel Fractionator ID 14287
