Agilent MS40+ Rotary Vane LC/MS Vacuum Pump (new in box)

$0

Availability: Out of stock SKU: 5281 Category:

Description

Agilent MS40+ Rotary Vane LC/MS Vacuum Pump

The Agilent MS40+ Rotary Vane LC/MS Vacuum Pump provides precision performance, with a terrific size to output ratio. This single-stage rotary vane pump has a base pressure of 5×10-2 mbar (3.75×10-2 Torr) and pumping speed range from atmosphere to 1 mbar (0.75 Torr) giving you high capacity in a small footprint. The Agilent pump is also smart with an I/O and RS RS232 / RS485 connection, that allows for remote diagnostics, as well as control of oil level, temperature, power, and to adjust the current between 40-60Hz for tailored performance. This rotary vane pump features onboard electronics to help with efficiency, manage speed, and make truly universal voltage and frequency possible. The MS40+ is also relatively quiet at 62 dB(A), and features an integrated design, with an oil return kit, anti-suck back valve, and exhaust filter. The Agilent MS40+ Rotary Vane LC/MS Vacuum Pump is an ideal choice for use with Agilent 6400 Series MS Systems and applications like LC-MS, ICP-MS, GC-TOFMS, Electron Microscopy, and more.

Specifications

Agilent MS40+ Rotary Vane LC/MS Vacuum Pump Specifications:

Free air displacement 828 l/min (29.2 cfm; 49.7 m3/h)
 Pumping Speed (at 5 mbar inlet pressure) 40 m3/h
 Ultimate Total Pressure 5×10-2 mbar
 Oil Capacity min/max 1 l
 Motor Rating 3ph 0.75 kW
Noise Level with gas ballast closed 62 dB(A)
Oil Temperature 60 °C
Pump operating
Operating Temperature Range 12 – 40 °C
Nominal rotation speed 1450 rpm
Dimensions 17x21x15”
Power 200-240 V,50 / 60 Hz, 1200 va, 12.5 A
Weight 85 lbs



Included

Included with Agilent MS40+ Rotary Vane LC/MS Vacuum Pump

  • Agilent MS40+ Rotary Vane LC/MS Vacuum Pump
  • 208V Power Cord (plugs into the back of the Mass Spec)
  • Pump Oil
  • Operator’s Manual
  • 30-Day Warranty

Notes

Technical Notes

This Agilent MS40+ Rotary Vane LC/MS Vacuum Pump has been fully inspected for functionality and is performing as it should. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

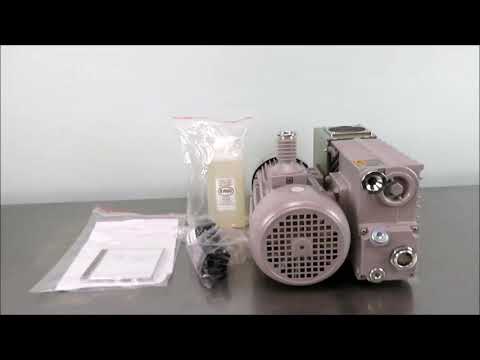

Agilent MS40+ Rotary Vane LC/MS Vacuum Pump Video

Agilent MS40+ LC/MS Vacuum Pump
