Anton Paar Litesizer 500 Particle Analyzer
The Anton Paar Litesizer 500 Particle Analyzer offers your lab a sleek and robust means of characterizing particles in liquid dispersions. This particle analyzer uses dynamic (DLS), electrophoretic (ELS), and static light scattering methods to measure particle size, zeta potential, and molecular mass. The Litesizer 500 optics are auto-adjusted for stability over years of use.
The Anton Paar Litesizer 500 Particle Analyzer uses a single-frequency laser diode with a wavelength of 658 nm that warms up for use in about 6 minutes. Detection angles can be set at 15, 90, or 175°, and the particle size range can be between 0.3nm to 10um. This particle analyzer works with either polystyrene, quartz cuvettes, or Zeta potential cuvettes.
This Anton Paar Litesizer Analyzer features simple-to-use software that shows all the user’s critical information in a single display, from input parameters to final calculated values. Assays can be run in a series, allowing users to vary the pH, the temperature, or the amount of time and observe how those changes impact particle properties. The Litesizer 500 includes continuous transmittance measurements to quickly determine suitability for a sample’s light scattering measurement. Users can also easily create reports and compile data to be 21CFR Part 11 compliant.
Specifications
Specifications
Anton Paar Litesizer 500 Particle Analyzer Specifications:
| Technology | Dynamic light scattering (DLS), Electrophoretic light scattering (ELS), Static light scattering (SLS), Transmittance |
| Light source | Laser light of wavelength 658 nm from a single frequency laser diode, providing 40 mW. |
| Laser warm-up time | 6 min |
| Detection angles | 15˚, 90˚, 175˚ (particle size), 15˚ (zeta potential), 90˚ (molecular mass) |
| Particle size range | 0.3 nm – 10 um (particle size), 3.8 nm – 100 um (zeta potential), 980 Da –20MDa (molecular mass) |
| Minimum concentration | 0.1 mg/mL (lysozyme) (particle size), 1 mg/mL (lysozyme)(zeta potential), 0.1 mg/mL (lysozyme) (molecular mass) |
| Temperature range | 0–90 °C (32–194 °F) |
| Minimum volume | 20uL (particle size), 350 uL (zeta potential), 20 uL (molecular mass) |
| Air/Gas | |
| Pressure | 0.4 to 0.8 bar overpressure, or 1.4 to 1.8 bar total input |
| Environmental | |
| Ambient temperature | +10 to +35 °C |
| Ambient humidity | up to 90 % non-condensing |
| Airborne noise emission | < 70 dB |
| Degree of pollution | 2 |
| Cuvettes | |
| Disposable cuvettes | polystyrene |
| Quartz cuvettes | quartz |
| Cuvette | caps polypropylene |
| Zeta potential cuvettes | Cuvette body: polycarbonate/ Electrodes: gold Caps: poly(ethene-co-tetrafluoroethene) |
| Dimensions | 19x21x6″ |
| Weight | 45lbs |
| Power | 230 VAC, 50/60 Hz, 50W |
Included
Included
Included with this Particle Analyzer
Anton Paar Litesizer 500 Particle Analyzer | CAT# 155761 | MSRP: $46,880.00
Windows 10 Laptop Running Kalliope 2.8.3 Software
Validation Report
Communication Cable
User Manual
120V Power Cord
30-Day Warranty
Notes
Notes
Technical Notes
This Litesizer has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

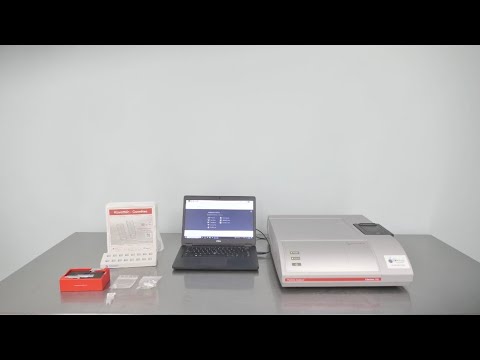

Anton Paar Litesizer 500 Particle Analyzer Video
Anton Paar Litesizer 500 Particle Analyzer ID 19329
