Baker Fume Hood BCC300AMS
The Baker Fume Hood BCC300AMS is a Class II biosafety cabinet designed to house a cell sorter and provide protection while in operation. Protection is provided through HEPA filtration, inflow to protect the users, and downflow air to protect the product. Room air enters through the front at a minimum of 105FPM/0.53m/sec. The contaminated air in this Baker BSC hood is pulled up through the side wall plenums into the cabinet supply blower, which is passed through HEPA filtration to either exhaust into the room or back down into the work area. This creates a high-velocity momentum air curtain to keep the area secure.
This Baker Fume hood also incorporates built-in aerosol management systems that independently evacuate aerosols from the sort collection chamber. This fume hood is built to work with the Sony SH800S cell sorter and meets several international biosafety standards, including the National Sanitation Foundation Standard 49 (NSF49) and the European Standard 12469.
Specifications
Specifications
Baker Hood BCC300AMS Specifications:
| Interior Dimensions | 36x28x36” |
| Intake Airflow | 105FPM/0.53m/sec |
| Certified Access | Opening Height 8” [203 mm] (2.18 ft2 [0.20 m2]Opening |
| Typical Noise | < 65 dBA (BCC On /AMS Off / SH800 operating) |
| Average Intake Airflow Velocity | 105-115 FPM [0.53-0.58 m/s] |
| Average Downflow Velocity | 40-50 FPM [0.20-0.25 m/s] without SH800 Flow Cytometer Installed |
| Average Downflow Velocity | 95-115 FPM [0.48-0.58 m/s] with SH800 Flow Cytometer Installed |
| Lighting | >60 foot-candles [646 lux] average typical at work surface |
| Typical Motor/Blower Reserve | >50% with no more than 10% decrease in total flow |
| Cabinet Air Recirculation/Exhaust | Partial recirculation |
| Vent to Room Exhaust | Volume1 251 CFM [118 l/s] |
| Dimensions | 46x38x66” |
| Weight | 275lbs |
| Power | 115v, 50/60Hz, 15amps |
Included
Included
Included with this Baker Fume Hood
Baker Fume Hood | CAT# BCC300AMS | Ideally Used to House a Cell Sorter
GFI Electrical Outlet Installed
Fluorescent Workspace Lamp Installed
Blower Motor Installed – united needs to be vented
User Manual
120V Power Cord (16A)
30-Day Warranty
Please Note: This is a vented biosafety cabinet that is ideally used to house a flow cytometer, or cell sorter, but can be used as a standard fume hood. A Blower motor is installed on this model, but a stand is not included. Buyer can use it as a benchtop model, or purchase a stand from the manufacturer.
Notes
Notes
Technical Notes
This Baker hood has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

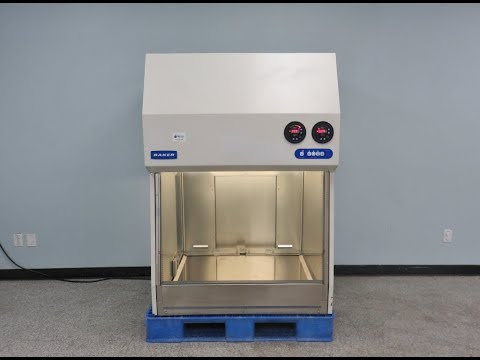

Baker Hood BCC300AMS Video
Baker Hood BCC300AMS ID 22163
