Description
Description
Beckman Allegra 6R Refrigerated Centrifuge
Beckman Allegra 6R Refrigerated Benchtop Centrifuge is designed for cell culture, plasma, and other biological or general separation processing of temperature-sensitive samples. This tabletop centrifuge can process up to 56 x 15 mL conical tubes and 12 microplates, as well as other vessels. Users can swap out rotors and accessories to best suit their needs. The well-known GH-3.8 swinging bucket rotor permits you to run tests from 1.5 mL to 750 mL tubes, microplates, bottles, and fluid bags.
Users can set their desired run parameters from the upfront control panel. Values are displayed on the digital screen, and individual knobs are used to dial in settings. The timer function can be set up to 30 minutes or to hold for a continuous run. The breaking profile will engage once the timer has elapsed, and the run will complete. The toggle switches let users select a high or low breaking speed or set to none for a coast-to-stop option.
The lid can be locked after loading simply by flipping the lever under the front. The controls include a second lid setting a toggle switch that releases the latch mechanism and opens the door after the rotor has come to a complete stop, and the manual lock is opened.
It has a total spin speed setting of 8000 rpm dialed in 200 RPM increments, however, speed will depend on the rotor being used. Temperatures can be set with the knob on the side and are shown on the dial display with the current temperature readout. The range is between -10 to 40°C, making it an ideal simple-to-use refrigerated benchtop centrifuge for your lab or research needs.
Specifications
Specifications
Allegra 6R Refrigerated Benchtop Centrifuge Specifications:
| Maximum Speed Settings | 8000 RPM in 200 RPM increments |
| Maximum speed for Rotors | 6,100 rpm fixed rotor
4730 rpm swinging bucket rotors (Please notes, different rotors each have different allowable max speeds) |
| Maximum g-force | 5710 x g for fixed rotor
4550 x g for swinging bucket rotors |
| Speed Control | ± 30 rpm of set speed |
| Drive Type | Direct brushless |
| Time Setting | 30 min time/hold |
| Temperature Range | -5° to 25°C set/ 0° to 35°C operating |
| Maximum Heat Output | 1.59 kW |
| Maximum Noise Output | < 60 dB |
| Dimensions | 30x28x16 in |
| Weight | 167 lbs |
| Power | 120V, 60 Hz, 12A |
Included
Included
Included with Beckman Allegra 6R Refrigerated Benchtop Centrifuge
Beckman Allegra 6R Refrigerated Centrifuge | CAT# 366816
Swing Rotor with Buckets
15ml (2qty)
Microplate Carriers (2qty)
User Manual
120V Power Cord (12A)
30-Day Warranty
Notes
Notes
Technical Notes
This Beckman Allegra 6R Refrigerated Centrifuge is in excellent working condition with a small blemish near the controls. It has been tested to meet factory specifications. All our lab equipment comes backed with our standard warranty.
Any thermometers, gas supply tanks, regulators, or data-loggers seen in our photos are not included unless otherwise noted in the listing. This is our testing tool to show buyer(s) the instrument is working properly up to manufacturer specification and has been tested by our service department.
Every piece of lab equipment that enters The Lab World Group receives a full preventative maintenance and quality control before being listed for sale. This ensures that all items ship within 1 to 3 days once your order is placed and that the lab equipment you receive is in pristine condition.
The first step is receiving the laboratory equipment into our facility. At that point regardless of the units origin they are instantly decontaminated using both simple green and isopropyl alcohol. For the next step, the laboratory instruments are then entered into our inventory system where each piece of equipment receives its own tracking ID and history. The inventory management is a large part of our system ensuring each piece of equipment receives the appropriate care as well as for any consigned pieces our customers have perfect tracking of their assets.
The maintenance of the centrifuges, analyzers, incubators, etc are all unique to their functions in the lab. The preventive maintenance process for an analyzer is vastly different than an incubator or lab refrigerator. One of the major differences with The Lab World Group is we service all our own laboratory equipment and are experts in servicing everything from a vortexer to a Chromatography System.
The First step we undertake when testing your centrifuge is the same regardless of whether is refrigerated, a benchtop or ultra-centrifuge. We ensure the centrifuge is properly balanced on the floor. Next, we check the rotor for any chips or defects and weigh the buckets for appropriate weight. The key to properly running any centrifuge is to ensure the unit is always balanced both internal and external.
Next, we then check the unit for physical defects and worn parts such as missing drip pans, dings and dents, gas lid struts, LCD screens, centrifuge seals, rotor seals, lid locking mechanisms, etc. We then open the centrifuge and perform a full preventive maintenance on the unit. This includes lubricating and greasing any gears, parts, and mechanisms. The electronic boards are reviewed for defective or expiring electronic parts such as transistors or capacitors.
We then install the rotor and buckets and run the centrifuge at a low rpm to ensure it is balanced and running properly. Using a tachometer, we then calibrate the centrifuge at a low speed to ensure accuracy. After calibration of the centrifuge we then run it through continued testing. We test the unit for 20 minutes, 40 minutes and 60-minute cycles at various speeds. The various rcf and rpm tests allow us to test that low-speed calibration is holding at high centrifugation speeds.
Next the unit is given a secondary cleaning and decontamination. At that point we picture and video the unit to show you the exact centrifuge that you will be receiving including the specific rotor buckets and inserts. This ensures that once you order the centrifuge it can easily pass its additional outbound quality control and be shipped within 1 -3 days.
Video
Video

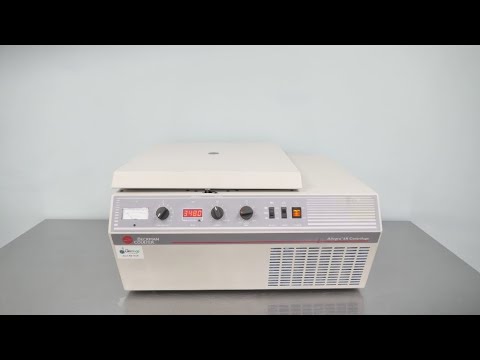

Beckman Allegra 6R Refrigerated Benchtop Centrifuge Video
Beckman Allegra 6R Refrigerated Centrifuge Video ID 19326
