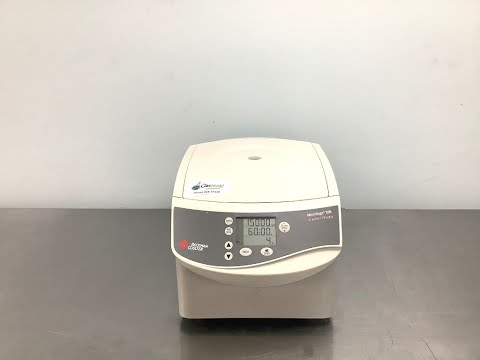

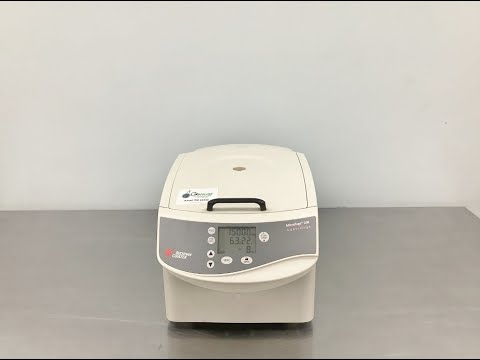

Beckman Microfuge 20R Centrifuge
The Beckman Microfuge 20R Centrifuge is a powerful, high-speed, flexible, compact solution for your lab. Labs can quickly process their applications, such as purifications, concentrations, phase separations, receptor bindings, rapid sedimentation of protein precipitates, particulates and cell debris, nucleic acid, protein preparations, pelleting, and extractions. The speeds top out at 15000 rpm with a maximum RCF of 20627 x g for fast sample processing. The system has a maximum capacity of 72 ml, allowing you to spin more samples per run. The temperature ranges from -10°C to +40°C in 1°increments.
Users can save time and effort with programmable protocols and intuitive user interface displays, showing the speed and RCF for an accurate picture. The operator can also create programs for frequently used protocols to help save time during the workday. The microprocessor control will store up to 10 user-defined programs and has both fast or soft acceleration and deceleration profiles to suit your needs. The system is great for running small R&D or prep spin projects.
Specifications
Specifications
Beckman Microfuge 20R Specifications:
| Maximum Speed | 15,000 rpm (in 100-rpm increments) min: 200 rpm |
| Maximum g-Force | 20627 xg |
| Set Time: | 10 sec to 99 min, 59 sec in one-second increments or continuous |
| Max Capacity Volume | 72 mL |
| Speed Control: | Actual rotor speed, ± 50 rpm of set speed |
| Acceleration/Deceleration | Fast, soft, Rotor can impact time |
| Temperature Range | -10°C to +40°C in 1°increments |
| Noise Level | <59 dBA |
| Environmental Conditions: | Humidity restriction <80% (noncondensing)
Max altitude 2000 m (6562 ft.) Ambient temperature range 5 to 40°C |
| Maximum heat dissipation into room under steady-state conditions | 580 Btu/h (170 W) |
| Dimensions | 12x26x12″ |
| Weight | 70lbs |
| Power | 120VAC, 5.3A, 60Hz |
Included
Included
Included with Beckman Microfuge 20R
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This Beckman Centrifuge has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
