Biorad CFX96 Real Time PCR System
$7,499
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
BioRad CFX96 Real-Time PCR System
The BioRad CFX96 Real-Time PCR system brings you 5 target detection and reliable software control and analysis. The CFX96 real time system is set on a C1000 Touch PCR Chassis to ensure the best results through each incubation step by using six independently controlled thermal electric modules. These electronic modules heat and cool and maintain tight control, even in ramping, while still shorting run times.
This Biorad CFX96 real-time system features solid-state optical technology for precise excitation and detection with six filtered LEDs and six filtered photodiodes. This advanced optics shuttle centers over each well in this thermocycler in a repeatable way, just above the sample plate to individually illuminate and detect each well with no cross talk, automatically collects data, and stores it so you can edit well-informed when it’s convenient. This Real-time PCR even has a dedicated channel for singleplex FRET readings and can return results for a single-color assay in as little as 3 seconds with the fast scan option.
The Bio Rad Real Time PCR CFX96 qPCR is easy to set up, through intuitive software and a bright LCD graphical display and onboard software. This PCR saves time and money with a protocol auto writer that identifies the ideal protocol based on your parameters such as polymerase, primers, and product length. This Thermal cycler also optimizes assays by identifying the best annealing temperature during a run with a thermal gradient function, with the ability to test up to 8 different temperatures at once.
The BioRad CFX96 Real-Time Thermal Cycler adapts to changes in needs with tool-free module changing, allowing you to quickly swap out thermal blocks and get back to business. The CXF96 Touch can be used as a standalone instrument, or for more analyzing power, controlling up to 4 instruments together through a PC with CFX software.
Specifications
Specifications
BioRad CFX96 Real Time PCR Detection System Specifications:
Max. ramp rate | 5°C / per second |
Average ramp rate | 3.3°C / per second |
Heating & Cooling Method | Peltier |
Lid | Heats up to 105°C |
Temperature Range | 0-100°C |
Temperature Accuracy | ±0.2 of the programmed target at 90°C |
Temperature Uniformity | ±0.4 well-to-well within 10 sec of arrival at 90°C |
Gradient Operational Range | 30 – 100°C |
Gradient Programmable Span | 1 – 24°C |
Optical Detection Excitation | 6 Filtered LEDs |
Optical Detection | 6 Filtered Photodiodes |
Range of Excitation / Emission Wavelengths | 450 – 730 nm |
Sensitivity | Detects 1 copy of target sequence in human genomic DNA |
Dynamic Range | 10 orders of magnitude |
Scan Time All Channels | 12 seconds |
FAM/SYBR Green only | 3 seconds |
Sample Capacity | 96 wells |
Sample Size | 1-50µl (10 – 25 recommended) |
Communication Interface | USB 2.0 |
Dimensions | 14″ x 19″ x 15″ inches |
Weight | 50 lbs |
Included
Included
Included with BioRad CFX96
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
The Biorad CFX96 PCR has been fully inspected and comes with current validation reports. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

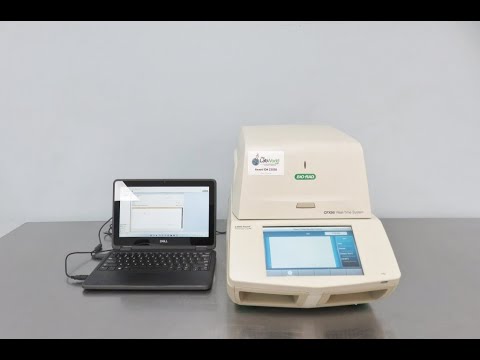

BioRad CFX96 Real-Time System Video
ID 25660-25847-26385-26400-26432-26433-26434-26566
Biorad CFX96 Real Time PCR System Video ID 23550
