Biotek 405TS Touch Screen Microplate Washer

$5,495

SKU: 23958 Category:
Clear

Included with ID 23958
Biotek 405TS Microplate Washer | CAT# 405TSUVS Touch Screen | MSPR: $21,317.10
Reagent & Waste Bottles with Lids and Tubing
Vacuum Pump
Four Buffer Dispense Built-in
Washer Carrier Plate
User Manual
120V Power Cord (5A)
30-Day Warranty

1 in stock

View cart View Quote List

Description

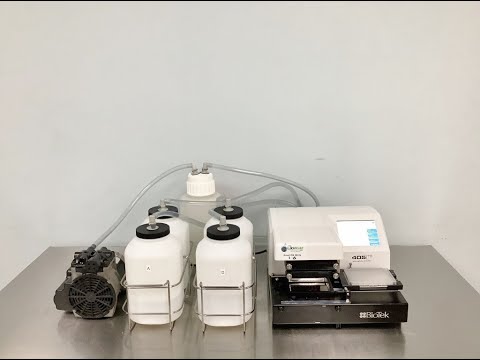

Biotek 405TS Touch Plate Washer

The BioTek 405TS Microplate Washer features touchscreen navigation and robust programming for washing, dispensing, and aspirating protocols. With superior performance and reliability, this system is ideal for applications ranging from gentle cell washing to more vigorous ELISA and bead washing. The single manifold with straight dispense tubes has a volume range between 50 and 3,000 µL/well in 1 µL increments. The built-in Sonicator keeps tubing clear to facilitate maintenance and help prevent build-up.

The BioTek 405 TS system is controlled by the innovative touchscreen controller, loaded with onboard software, to guide users through creating and executing wash, dispense aspirate, and maintenance protocols. The system will hold up to 250 wash cycles in memory and has a wash speed of  <30 seconds at 300 µL/well and 3 cycles. This system can also be operated through a controlling computer, allowing users to set up 21 CFR part 11 compliance using the appropriate LHC software. This BioTek 405 TS microplate washer unit also has the convenience of being BioStack compatible for walk-away automation, creating the opportunity to process 50 microplates simultaneously.

405TSUVS- The model features a dual manifold, optimized cell washing, 4-buffer switching, ultrasonic cleaning

405TSRVS- Model Features 96 well manifold, 4-buffer switching, and Ultrasonic Cleaning

405TSUVSQ – This model features all possible options, including optimized cell washing, 4-buffer switching, ultrasonic cleaning, and verify technology clog detection

Specifications

Biotek 405TS Touch Plate Washer Specifications:

Microplate types 96 well

384 well (405TSUS)

Low profile and standard height

Onboard software Create, edit or run multiple protocols
Shaking Programmable up to 60 minutes

Slow, medium, fast or variable

Soaking Programmable up to 60 minutes
WASHING
Manifold type 96 pin – 405TSRVS

Dual 96/384 pin -405TSUVS

Volume range 50 to 3000 μL/well (96-pin manifold) (405TSRS)
Wash cycles 1 – 250
Dispense precision <3% CV: 300 µL/well (96-well washing)
Residual volume <2 µL/well (96- & 384-well plates)
Wash speed 96-wells: 300 μL/well, 3 cycles: <30 s
Flow rates High flow to low flow
Sterilization Chemical
Vacuum Filtration (optional module required) Selectable: Approximate final at 30 seconds:
Lowest: -38 mmHg
Low: -113 mmHg
Medium: -200 mmHg
High: -390 mmHg
Highest: -506 mmHgVacuum filtration time range: 5 to 999 seconds
Power 100 – 240 Volts AC. 50/60 Hz
Dimensions 23x27x16”
Weight 58 lbs



Included

Included with Biotek 405TS Touch Plate Washer

Please see individual SKU ID’s for a complete list of included items.

Notes

Technical Notes

This Plate Washer from Biotek has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
