BioTek ELX405 Select CW Microplate Washer | ELX405UCWS

0 out of 5
( There are no reviews yet. )

Availability: Out of stock SKU: 16544 Category:

Description

BioTek ELX405 Select CW

The BioTek Elx405 Select CW is a robust microplate washer built by one of the industry’s leaders in microplate technology.  The ELX405 Select CW aspirates and dispenses into 96- and 384-well standard height and low-profile microplates and is a total solution for all a laboratory’s solid bottom microplate washing needs. The onboard software also allows users to control their desired shaking and soaking times, and construct their protocols to save time on often repeated applications.

The system is capable of cell washing and ideally suited for plate preparation for assays such as ELISA. The new ELx405 Select CW from BioTek is a robot-compatible, full-plate washer incorporating BioTek’s patented Dual-Action manifold with independent filling and evacuation control for precise overfill washing and overflow protection. There is also built-in priming that allows the ELx405U Select Microplate Washer to avoid having to use blank plates during the process and avoids wasting consumables. This system is an ELX405UCWS model which includes: Cell washing that operates at super low flow rates for non-disruptive cell washing, and a built-in Ultrasonic Cleaning that helps keep the instrument clear and free of clogs.



Specifications

Biotek ELx405 Select CW ELX405UCWS Specifications:

Microplate Types 96-well plates/strips

384-Well plates

Low profile and standard height
Manifold Types Two manifolds, one with 96 aspirate tubes and another with 96 dispense tubes to process 96- and 384-well plates.
Sterilization Chemical
Flow Rates High flow to low flow

Optimized rates for cell assays
Wash Speed 96-well: < 30 seconds: 3 aspirate/dispense cycles, 300 µL/well, no soak, final aspirate
Dispense Precision ≤4.0% CV: 300 µL/well (96-well washing)
Residual Volume <5 µL/well after a 3-cycle wash
Supply bottle 3.7 L
Wash Cycles 1 -10
Volume Range 25 to 3000 microliter increments
Shaking User-programmable speeds and timing
Soaking Programmable up to 600 seconds
Onboard Software Create, edit and run up to 75 protocols

Multiple pre-programmed maintenance protocols
Weight 40 lbs
Dimensions 14x18x11”
Power 100 to 204V, 50/60Hz, 8.0A

Included

Included with Biotek ELx405

BioTek ELX405 Select CW Microplate Washer | CAT# ELX405UCWS
Reagent & Waste Bottles with Tubing
Vacuum Pump
User Manual
120V Power Cord
30-Day Warranty



Notes

Technical Notes

This Biotek plate washer has been fully inspected and is operating without issue. Please Note: Plate Washer has the following options installed; Cell Washing (CW), 96/384 Capability (U), Ultrasonic Cleaner for manifold self-cleaning (S) and buffer switching module compatible (V). We performed dispensing aspiration, and leak tests on all channels within the manifold as part of our inbound QC.  The system is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

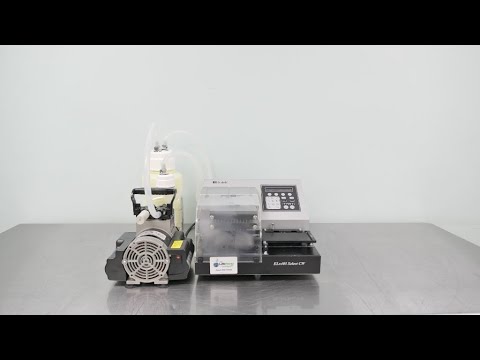

BioTek Elx405 Select CW Video

BioTek ELX405 Select CW Microplate Washer ID 16544
