Biotek ELx808 Microplate Reader Absorbance

0 out of 5
( There are no reviews yet. )

Availability: Out of stock SKU: 20783 Category:

Description

Biotek ELx808 Absorbance Microplate Reader

The BioTek ELx808 UV-Vis Plate Reader provides reliable performance and flexible data reporting in a simple-to-use instrument. This Absorbance Microplate Reader is ideal for applications in agriculture, biotechnology, cell biology, counting and proliferation, Food processing, Kinetic ELISA, Neuroscience, and many more. The BioTek ELx808 has 96 well plate configurations and a wavelength range between 380 and 900 nm (340-900 on the ELX808IU) model. In addition, evaporation and edge effects are minimized thanks to the unique heated track and carrier design.

The Biotek Elx808 self-tests through an onboard diagnostic and can be calibrated with a test plate to ensure your Biotek microplate reader is ready to go. This BioTek plate reader comes with a robust catalog of onboard data analysis, such as transformation formulas, assay control, and validation. It processes multiple assays on one plate and reports kinetic rate, R2, and onset time without needing a PC. This microplate reader offers fast kinetics with measurement in as little as 6 seconds.

The BioTek ELx808 UV-Vis Plate Reader also comes with Gen 5 Software, which gives users an easy-to-use, intuitive interface and data reduction tools to help streamline information and increase productivity. This plate reader also offers superior optics with a clever staggered design to eliminate channel-to-channel cross-talk. The system has already received full PM and passed validation during IQ on our inbound QC tests.

Models designated IU feature 4-zone temperature control and an incubation range of up to 50°C. Please inquire about availability.



Specifications

BioTek ELx808 Absorbance Reader Specifications:

General
Detection modes Absorbance
Read methods End point, kinetic, linear scanning
Microplate types 96-well plates
Temperature control 4-Zone incubation to 50 °C (+0.2 °C at 37 °C) Model Dependent
Shaking Linear
Software Gen5 Reader Control Software
Absorbance
Light source Tungsten halogen
Detector photodiode
Wavelength selection filters
Wavelength range 340 to 900 nm IU models

380 to 900 nm base model
Dynamic range 0 to 4.0 OD
Resolution 0.001 OD
Pathlength correction no
Filter wheel capacity 6 positions
Filters supplied 4 filters (5 with UV option)
OD accuracy < 1% at 2.5 OD

< 2% at 3.5 OD
OD linearity <1% at 2.5 OD
OD repeatability < 0.5% at 2.5 OD

< 1.5% at 3.5 OD
Reading speed (kinetic) 96 wells: 8 seconds
Physical Characteristics
Power 100 – 240 Volts AC. 50/60 Hz
Dimensions  16 x 14 x 7”
Weight 20lbs





Included

Included with Biotek ELx808 Absorbance Microplate Reader

Biotek El808 Microplate Reader | Absorbance
Windows 10 Laptop Running Gen5 Software
Absorbance Validation Report
Communication Cable
User Manual
120V Power Cord (5A)
30-Day Warranty

Notes

Technical Notes

This plate reader has been fully inspected and comes with current validation reports. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

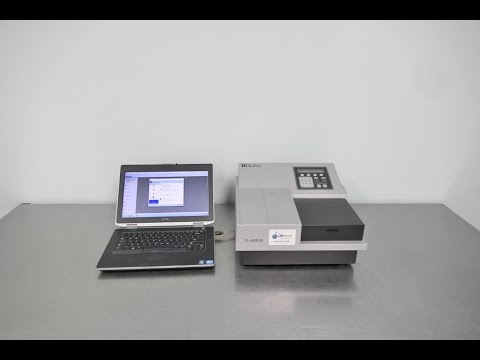

Biotek ELx808 Absorbance Microplate Reader Video

Biotek ELx808 Absorbance Microplate Reader ID 20783
