Description
Description
BioTek Epoch 2 Microplate Reader
The Biotek Epoch 2 is a compact microplate reader with reliable absorbance reading. This microplate reader takes measurements in 6-384 well plates, with a broad range of 200 nm to 999 nm wavelength, making it ideal for applications ranging from nucleic acid and protein quantifications to microbial growth. This Biotek spectrophotometer also features endpoint, kinetic, spectral scanning, well area scanning modes, and incubation and shaking. Temperature-sensitive and cell-based assays can be controlled with Epoch2’s 4-zone incubation up to 60°C.
This Epoch 2 microplate spectrophotometer can be controlled through a PC loaded with Gen 6 software for robust data analysis. You can select from predefined protocols or create custom programs through the program. The Epoch Gen6 software has pre-programmed protocols and auto-corrects path length for an easy run from reading to output. The instrument is also useful for qualitative and quantitative colorimetric assays. Epoch 2 is also a Biostak robot that is compatible with walk-away capabilities.
Specifications
Specifications
BioTek Epoch 2 Specifications:
| Detection modes | Absorbance |
| Read methods | Endpoint, kinetic, spectral scanning, well area scanning |
| Microplate types | 6- to 384-well plates, cuvette |
| Automation | BioStack and 3rd party automation compatible (‘R’ configuration) |
| Absorbance | |
| Light source | Xenon flash |
| Detector | photodiode |
| Wavelength selection | monochromator |
| Wavelength range | 200 to 999 nm, in 1 nm increments |
| Monochromator bandwidth | 5 nm |
| Dynamic range | 0 – 4.0 OD |
| Resolution | 0.0001 OD |
| Pathlength correction | yes |
| Monochromator wavelength accuracy | + 2 nm |
| Monochromator wavelength repeatability | + 0.2 nm |
| OD accuracy | 0 to 2.0 OD ±1% ±0.010 OD
2.0 to 2.5 OD ±3% ±0.010 OD |
| OD linearity | 0 to 2.0 OD ±1% ±0.010 OD
2.0 to 2.5 OD ±3% ±0.010 OD |
| OD repeatability | 0 to 2.0 OD ±1% ±0.005 OD
2.0 to 2.5 OD ±3% ±0.005 OD |
| Stray light | 0.03% at 230 nm |
| Reading speed (kinetic) | 96 wells sweep read: 8 seconds
384 wells sweep read: 14 seconds |
| Temperature control | Ambient + 4-65°C |
| Shaking | Orbital, double orbital, linear |
| Dimensions | 16x13x9” |
| Weight | 22 lbs |
| Power | 100 – 240 Volts AC. 50/60 Hz. |
Included
Included
Included with this Biotek Plate Reader
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes on this Plate Reader
This microplate reader has been fully inspected and comes with a current validation report. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

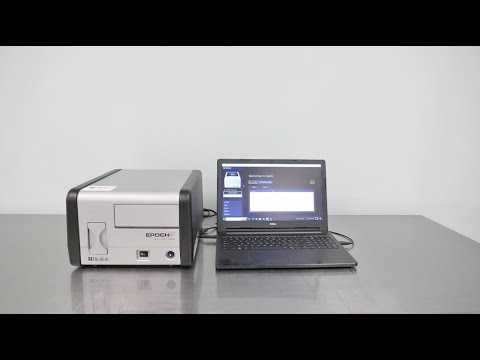

BioTek Epoch 2 Microplate Reader Video
ID 25472

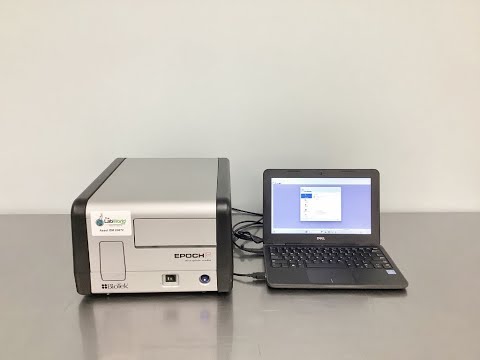

Biotek Epoch 2 Microplate Reader with Cuvette ID 25472
ID 26072
Biotek Epoch 2 Microplate Reader ID 26072
ID 25896

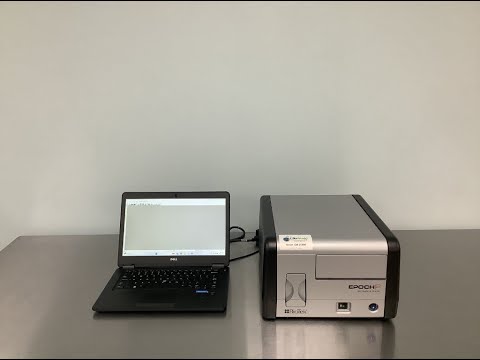

Epoch 2 Biotek Microplate Reader Video ID 25896
