Description
Description
Biotek Epoch Microplate Reader
The Biotek Epoch is a compact microplate spectrophotometer that brings you a reliable monochromator-based absorbance reading. This microplate reader is versatile, cost-effective, and microvolume capable. This Biotek plate reader is filter-free and has a wavelength range of 200 nm to 999 nm. This robust and low-maintenance microplate reader is controlled by Gen6 software, which has powerful data analysis capabilities. The Epoch is also a bio-stack robot compatible with walk-away capabilities.
This Epoch microplate spectrophotometer is an ideal choice for wavelength scanning, endpoint, kinetics, ELISA, and microvolume analysis of nucleic acid and proteins. The instrument is also useful for qualitative and quantitative colorimetric assays. The Epoch Gen5 software for this Biotek plate reader comes with pre-programmed protocols and auto-corrects path length for an easy run from reading to output. The Epoch works with 6 to 384-well microplate formats with quick, efficient returns. Using the Biotek Take3 Microvolume plates provides a 2ul sample volume solution for rapid results for up to 48 samples at a time. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Specifications
Specifications
Biotek Epoch Microplate Spectrophotometer Specifications:
| Detection modes | Absorbance |
| Read methods | Endpoint, kinetic, spectral scanning, well area scanning |
| Microplate types | 6- to 384-well plates |
| Other labware supported | Take 3 Micro-Volume Plates |
| Automation | BioStack and 3rd party automation compatible (‘R’ configuration) |
| Absorbance | |
| Light source | Xenon flash |
| Detector | photodiode |
| Wavelength selection | monochromator |
| Wavelength range | 200 to 999 nm, in 1 nm increments |
| Monochromator bandwidth | 5 nm |
| Dynamic range | 0 – 4.0 OD |
| Resolution | 0.0001 OD |
| Pathlength correction | yes |
| Monochromator wavelength accuracy | + 2 nm |
| Monochromator wavelength repeatability | + 0.2 nm |
| OD accuracy | 0 to 2 OD: +1% +0.010 OD
2 to 2.5 OD: +3% +0.010 OD |
| OD linearity | 0 to 2 OD: +% +0.010 OD
2 to 2.5 OD: +3% +0.010 OD |
| OD repeatability | 0 to 2 OD: +1% +0.005 OD
2 to 2.5 OD: +3% +0.005 OD |
| Reading speed (kinetic) | 96 wells: 15 seconds
384 wells: 31 seconds |
| Dimensions | 12 x 13 x 8 “ |
| Weight | 15 lbs (6.8 kg) |
| Power | 100 – 240 Volts AC. 50/60 Hz. |
Included
Included
Included with Biotek Epoch Microplate Spectrophotometer
Please see individual SKU’s for a complete list of included items.
Notes
Notes
Technical Notes
This listing is for a used absorbance Biotek Plate Reader that’s been fully tested and validated by our service team with a clean bill of health. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

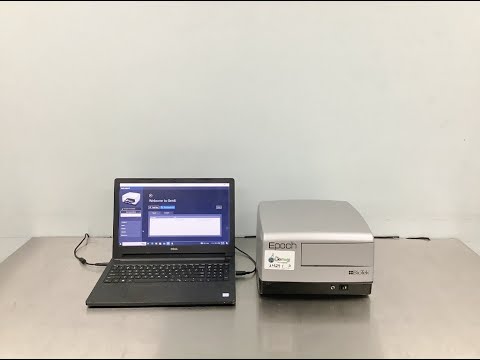

Biotek Epoch Microplate Spectrophotometer Video
ID 24253
Biotek Epoch Plate Reader ID 24253
ID 23524

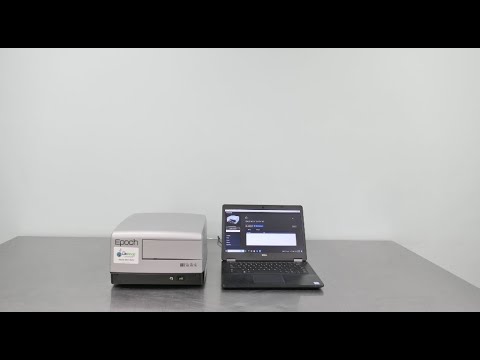

BioTek Epoch Microplate Spectrophotometer Video ID 23524
