Description
Description
Biotek Synergy 2 Multi-Mode Plate Reader
The BioTek Synergy 2 is an easy-to-operate multimode microplate reader built for drug discovery (R&D) and the biotech life-science and research arena. This modular system is configured with Absorbance, Luminescence, and Fluorescence capabilities. Luminescence measurements are performed with a low-noise PMT through an empty filter position in the Emission filter wheel. Filters can also be used if light filtering is necessary.
Synergy 2 has monochromator-based UV Vis Absorbance, top and bottom fluorescence intensity, and Luminescence modules. In addition, this Biotek microplate reader has 4 zone temperature control, with a range of between 4-50°C and three shaking speeds. The Synergy 2 Luminescence Plate reader will accommodate standard 6-, 12-, 24-, 48-, 96-, and 384–well microplates and the BioTek Take3 Multi-Volume Plate.
The Synergy 2 Plate Reader is controlled by a computer using BioTek’s Gen 5 Software which is compatible with AlphaScreen assays and certified for HTRF, DLR, and LantaScreen. This Biotek microplate reader is robot accessible and compatible with BioTek’s BioStack Microplate Stacker. Gen5 supports OLE automation to facilitate Synergy 2’s integration into an automated system.
The SLFAD model features incubation control, shaking, Luminescence, Fluorescence intensity, both top, and bottom reading, UV-Vis Absorbance, and is compatible with the Dual Reagent Dispenser Module, sold separately.
Specifications
Specifications
BioTek Synergy 2 Microplate Reader Specifications:
| Detection Method | Fluorescence, Absorbance, Luminescence |
| Microplate types | 6- to 1536-well plates (luminescence 1-384) PCR plates Compatible with Take3 Multi-Volume Plate with 2 µL microspot |
| Light Source: | Absorbance: Xenon flash light-source, 10W maximum average power, lamp life 1 billion flashes (not user-changeable) Fluorescence: Tungsten quartz halogen, 20W power, lamp life 1000 hours (user-changeable) |
| Absorbance: | |
| Measurement Range: | 0.000 to 4.000 OD |
| Scanning Speed | 96: 11 seconds, 384: 22 seconds, 1536: 42 seconds |
| Wavelength Range | 200 to 999 nm 1 nm increment |
| Wavelength Selection | Monochromator |
| Bandwidth | 2.4 nm |
| Detector | Photodiodes |
| Luminescence | |
| Low Noise PMT | 50 amol/well flash ATP in a 96-well plate |
| Fluorescence | Fluorescence intensity, top and bottom |
| Excitation Filter: | 485/20 nm |
| Emission Filter | 528/20 nm |
| Samples per well | 10 |
| Read Speed | 96 well / 99 sec, 384 well / 339 sec, 1536 well / 1256 sec |
| General | |
| Incubation | Temperature control range from 4º over ambient to 50ºC. Temperature variation ± 0.50°C across the plate @ 37°C (250 µl per well with the plate sealed). |
| Plate Shaking | Low, Medium, High and Variable shaking speeds. Shake time is programmable by the user. |
| Physical Characteristics | |
| Dimensions | 18x17x15” |
| Power | 100-240 V, 50-60 Hz |
| Weight | 35 lbs |
Included
Included
Included with Biotek Plate Reader
Biotek Synergy 2 Microplate Reader | Multi-Detection | CAT# SLFAD
Windows 10 Laptop Running Gen5 Software
Absorbance Validation Report
Fluorescence Validation Report
Absorbance Module Installed
Fluorescence Module Installed
Luminescence Module Installed
Communication Cable
User Manual
120V Power Cord (9A)
30-Day Warranty
Notes
Notes
Technical Notes
This Biotek Synergy 2 Plate Reader has been fully tested and validated by our service team. System comes with a clean bill of health and ships within three business days. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

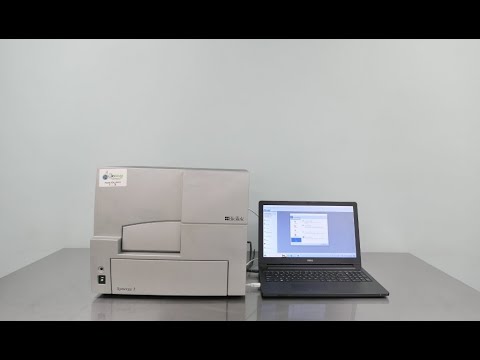

Biotek Synergy 2 Multi-Mode Plate Reader Video
Biotek Synergy 2 Microplate Reader ID 18531
