Bruker Alpha II FTIR Spectrometer
The Bruker Alpha II offers your lab a modular and compact FT-IR spectrometer that’s easily adaptable and useful in almost any industry. This spectrometer features a resilient design with Quicksnap swappable reading modules and is outfitted with the universal sampling module for all kinds of samples: solids, liquids, and gases. Its compact footprint allows users to move it wherever needed, and the sturdy construction makes it resistant to vibrations. Spectrometers measure the light reflected by a sample rather than absorbed light, as with a spectrophotometer.
The Bruker Alpha II Spectrometer has intuitive software to guide users through set-up and analysis. It can get new users up and running in just a few minutes. The Alpha II has a Rocksolid interferometer that’s always aligned for advanced stabilization, a Centerglow infrared source, and a solid-state diode laser. The transmission sample compartment has a 2×3 standard sample holder and accommodates a variety of liquid and gas cells.
Specifications
Specifications
Bruker Alpha II Specifications:
| Spectrometer Housing | Rigid and durable metal housing |
| Detector and Interferometer | Temperature-controlled DLaTGS-detector; RockSolid cube corner interferometer |
| Spectral Range | 350 – 8,000 cm-1, with standard KBr beamsplitter |
| Signal-to-Noise Ratio | Typically > 55,000:1 (1 min measurement time, spectral resolution 4 cm- |
| Accuracy and Precision | <0.05 cm-1 @ 1576 cm-1, <0.0005 cm-1 @ 1576 cm-1 |
| Spectral resolution | Better than 2 cm-1 |
| Wavenumber accuracy | <0.05 cm-1 @ 2,000 cm-1 |
| Wavenumber precision | Repeatability |
| Photometric accuracy | Better than 0.1% |
| QuickSnap sampling modules | Full coverage of all typical M-IR sampling and measurement techniques, easy exchange with reliable one-button fixing mechanism
Transmission: KBr pellet holder, variety of liquid and gas cells, heatable gas cells with 7 cm and 4.8 m path length SOLD SEPARATELY Platinum-ATR: Single reflection ATR with monolithic diamond, soldered in tungsten carbide hard metal for highest mechanical and chemical robustness; optional heating function; life time >10 years Eco-ATR: Single reflection ATR with ZnSe and Ge crystals Multi-ATR: Multi reflection ATR with ZnSe crystal Reflection: Variety of diffuse and specular reflection modules providing the optimal interface for any sample; reflection with integrated video-option |
| Dimensions | 9x12x5” |
| Weight | 12lbs |
| Power | 100 – 240 VAC, 50 – 60 Hz, 20 W (low energy consumption) |
Included
Included
Included with this Spectrometer
Bruker Alpha II FTIR Spectrometer | CAT# 1003271/20 | MSRP: $42,895.00
Windows 10 Laptop Running OPUS 7.5 Software
System Validation Report
Sample Holder
Communication Cable
User Manual
120V Power Cord (9A)
30-Day Warranty
Notes
Notes
Technical Notes
This spectrometer has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

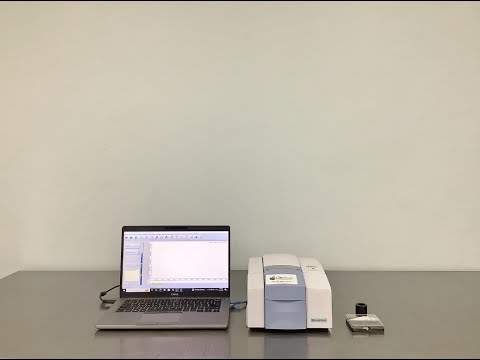

Bruker Alpha II FTIR Spectrophotometer Video
Bruker Alpha II FTIR Spectrophotometer ID 23523
