BTX ECM 2001 Electroporator

0 out of 5
( There are no reviews yet. )

Availability: Out of stock SKU: 22056 Category:

Description

BTX ECM 2001 Electroporator

The BTX Electro Cell Manipulator is an electrophoration square wave generator and multifunctional electrofusion generator. The BTX electroporator supplies AC and DC wave pulses for applications involving embryo and cell fusions. The switchover from AC to DC takes a microsecond for efficient fusion, followed by a second application of AC, resulting in a higher number of hybrids during the rounding-off process.

The DC of this cell manipulator system can be used as a stand-alone electroporation device that offers a wide range of voltages between 5-3000V and pulse lengths. It can operate at low impedance loads of 20 Ω. The AC waveform is 1 MHz. All of our lab equipment comes fully tested and backed by our standard 30-Day warranty. Should you have any questions, please don’t hesitate to contact us.

Specifications

BTX ECM 2001 Electroporator Specifications:

Electrical Characteristics:
Alignment: Frequency 1 MHz, fixed
Voltage 0 to 75 VRMS
Duration 0 to 99 sec
Post-Fusion AC:
Frequency 1 MHz, fixed
Voltage (VRMS) 1/10 of the alignment AC amplitude, attenuates with time
Duration 0 to 9 sec
Electroporation:
High Voltage Mode (HV Mode):
Voltage 10 to 3000 V peak
Pulse Length 1 to 99 µsec
Low Voltage Mode (LV Mode):
Voltage 10 to 500 V peak
Pulse Length 1 to 99 msec, 0.01 to 0.99 msec
Number of Repeats 0 to 9
LV Mode

Less than a 20% V drop at the end of the pulse with the following constraints:

 PL ≤ 25 ms, load 3 20 Ω

PL ≤ 1 sec, load 3 1k Ω

PL ≤ 10 sec, load 3 10k Ω
HV Mode

Less than a 10% V drop at the end of the pulse with the following constraints:

 PL ≤ 600 µs, load 3 40 Ω


Dimensions 17x15x11
Weight 40lbs
Power 100-120v, 50/60hz, 1.6kW pulse, 85w idle

Included

Included with this Electroporation System

Includes:
Harvard Apparatus BTX Electroporator | CAT# ECM 2001 Electro Cell Manipulator | MSRP: $24,314.74
Positive and Negative Probes
User Manual
120V Power Cord (3A)
30-Day Warranty



Notes

Technical Notes

This electroporation system has been thoroughly inspected and is operating without issues. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

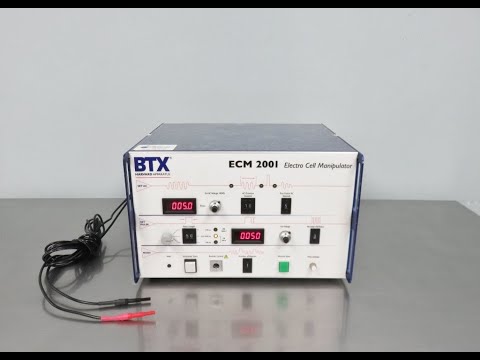

BTX ECM 2001 Electroporator Video

BTX ECM 2001 Electroporator ID 22056
