Description
Description

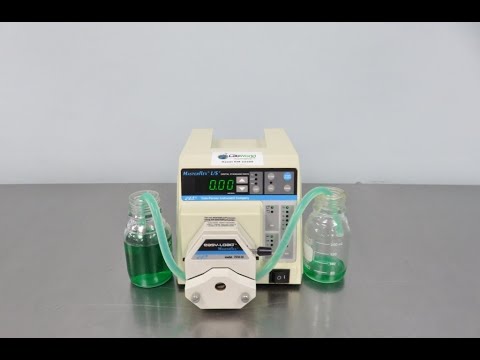

Cole Parmer MasterFlex L/S Peristaltic Pump
The Cole Parmer Masterflex L/S Peristaltic Pump 7523-70 is a reliable and versatile pump with a maintenance free brushless motor. Perfect for critical metering and dispensing applications, this pump will last for years and provide consistently accurate pumping volumes. Different pump heads are easily swappable depending on your specific needs. From the upfront control panel, users can adjust the flow rate, tubing size, pump direction, and calibration, or prime the instrument, select a different mode, and start/stop the pump. The motor for this Masterflex pump is reversible, pumping fluid in either direction to purge tubing before or after pumping. The drive operates between 1.6 and 100 rpm, giving you precise control. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Specifications
Specifications
Cole-Parmer Masterflex Specifications
| Pump Series | L/S |
| Control Type | Digital Variable Speed |
| Min RPM | 1.6 |
| Max RPM | 100 |
| Speed | Variable |
| Speed Control | ±0.25% |
| Max Torque Output | 360 oz-in (26kg/cm) |
| Max Flow Rate | 580mL/min |
| Min Flow Rate | 0.1mL/min |
| Reversible Motor | Yes |
| Pump Heads accepted | Standard, Easy-Load, Easy-Load II, Quick Load, High Performance, Cartridge, Multichannel, PTFE Tubing, PTFE Diaphragm |
| Drive IP Rating | IP 23 |
| Motor HP | 1/10 |
| Dimensions | 8x16x8” |
| Weight | 12 lbs |
| Electrical | 115/230VAC |
Included
Included
Included with the Masterflex Pump
Cole Parmer MasterFlex L/S Pump Model 7523-70 | Cat# 6L57
Easy-Load Pump Head | Cat#7518-50
User Manual
120V Power Cord
30-Day Warranty
Notes
Notes
Technical Notes
This pump has been fully tested and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
MasterFlex L/S Video
Cole Parmer Masterflex Peristaltic Pump Video ID 22399
