Cole Parmer MasterFlex Peristaltic Pump
The Cole Parmer Masterflex 77420-00 Peristaltic Pump is a console process drive that brings you reversible pumping action in a rugged performance and precise digital control. This peristaltic pump has a flow rate ranging from 0.01 to 26 LPM depending on drive rpm and tubing size. The motor for this Masterflex IP lab pump is also reversible, pumping fluid in either direction to purge tubing before or after pumping. The drive operates between 1 and 650 RPM on a 3/8 hp and gives you precise control, an ideal choice for metering applications.
The Masterflex IP Peristaltic Pump is easy to adjust through the upfront membrane keypad, with a digital display that gives you at a glance confirmation of speed and direction on a three-digit LED display. Speed and power, on or off, are controlled separately on this lab pump, so the speed is maintained while starting or ending the pump. This Masterflex pump accepts the following pump heads: Standard, Easy-Load, and High Performance.
Specifications
Specifications
Cole Parmer Masterflex Peristaltic Pump Motor Specifications:
| Pump Series | I/P |
| Control Type | Digital Variable Speed |
| Min RPM | 1 |
| Max RPM | 650 |
| Speed | Variable |
| Speed Control | ±0.25% |
| Max Flow Rate (mL/min) | 26000 |
| Min Flow Rate (mL/min) | 10 |
| Reversible Motor | Yes |
| Digital Dispensing | Yes |
| No. of Pump Heads Accepted | 2 |
| Type of Pump Heads Accepted | Standard, Easy-Load, High-Performance |
| Motor (watts) | 280 |
| Power (VAC) | 115/230 |
| Motor hp | 3/8 |
| Dimensions | 12X21X17″ |
| Weight | 73 lbs |
Head Specifications: Masterflex I/P Model 77601-00 Easy-Load Pump Head for Precision Tubing
| Pump Series | I/P |
| Number of Channels | 1 |
| Max diff | 35 psig |
| Max Flow Rate (LPM) | 10.8 |
| Tubing sizes accepted | I/P 26, 73, 82 |
Included
Included
Included with Cole Parmer Masterflex:
Cole Parmer Masterflex Peristaltic Pump | CAT# 77420-00 I/P Digital Console Drive | MSRP: $8131.00
Pump Head
120V Power Cord (5A)
30-Day Warranty
Notes
Notes
Notes on Masterflex pump:
This peristaltic pump has been fully tested by our service team with a clean bill of health. Please note the tubing and glassware seen in the pictures and video are not included. They are our testing tools to demonstrate a fully working system.
Video
Video

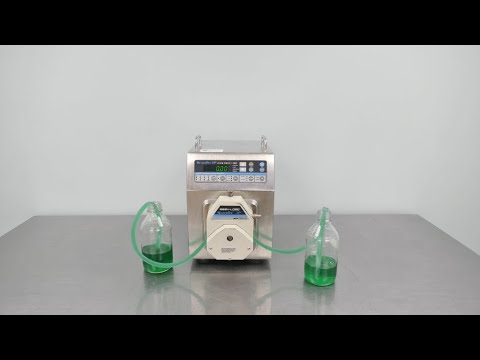

Video of Masterflex IP Console Drive
Cole Parmer Masterflex Peristaltic Pump 77420 00 ID 18443
