Description
Description
Cole Parmer Masterflex Pump
The Cole-Parmer MasterFlex Digital Gear Pump provides a brighter graphic interface and IP33 splash rating. This digital drive pump has a 1/10 hp pump drive with a speed range of 36-3600rpm and a flow rate of 0.6 to 4212 mL/min with a reversible flow. This digital peristaltic pump can dispense by volume in mL, L, or gal and features an anti-drip function for accurate dispensing. The Cole-Parmer MasterFlex Digital Gear Pump microprocessor control allows users to choose operating modes, such as continuous run, timed dispense, copy dispense, and volume dispense. This pump drive is also capable of batch processing with a count function that displays how many batches are completed and a cumulative volume function. The IP33 enclosure helps protect the internal components from damage.
The MasterFlex is also partnered with an A-mount gear pump head that delivers leak-free operation and precision gearing to provide smooth, accurate pulseless fluid delivery.
Specifications
Specifications
Cole Parmer Masterflex Pump Specifications:
| Speed range | 36-3600 rpm |
| Reversible Motor | Yes |
| Max Flow Rate (mL/min) | 4212 |
| Min Flow Rate (mL/min) | 0.6 |
| Drive IP rating | IP 33 |
| Power (VAC) | 90 to 260 |
| Motor hp | 1/10 |
| Dimensions | 13x7x9” |
| Weight | 17 lbs |
| Pump head | |
| Flow Rate (mL/rev) | 1.17mL/min (07003-04)
0.084mL/min (07002-27) |
| At 50 rpm | 58.50mL/min (07003-04)
4.20mL/min (07002-27) |
| At 5000 rpm | 5850 mL/min (07003-04)
420mL/min (07002-27) |
| Max pressure (bar) | 4.13 Diff (07003-04)
2.75 Diff (07002-27) 20.68 System (07003-04) 20.68 System (07002-27) |
| Port | 1/8” (07003-04)
1/8″ (07002-27) |
| Wetted Parts | 316 SS (07003-04)
316 SS (07002-27) |
| Max Speed | 10,000 RPM (07003-04)
8,000 (07002-27) |
Included
Included
Included with this Masterflex Peristaltic Pump
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This Digital Gear Pump has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

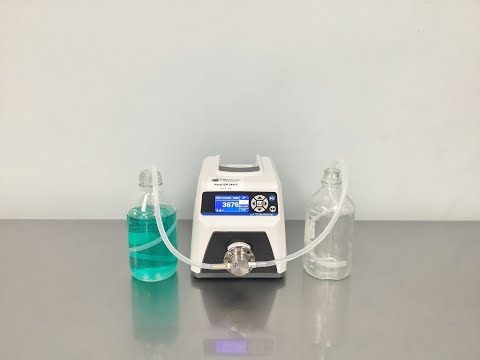

Cole Parmer Masterflex Pump Video
ID 24411-24413
Cole Parmer Masterflex Pump ID 24411
ID 24404

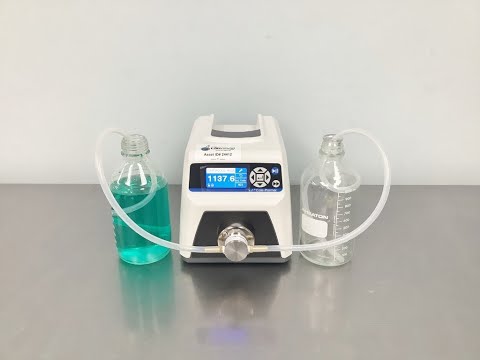

Cole Parmer MasterFlex LS Peristaltic Pump Video ID 24404
ID 24412

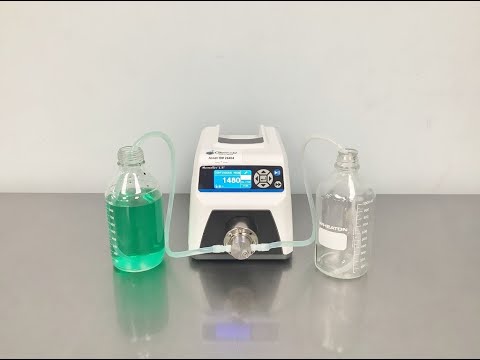

Cole Parmer Masterflex LS Peristaltic Pump Video ID 24412
