Distek 2500 Dissolution Apparatus – Deep Well Vessel

0 out of 5
( There are no reviews yet. )

$0

Availability: Out of stock SKU: 9889 Category:

Description

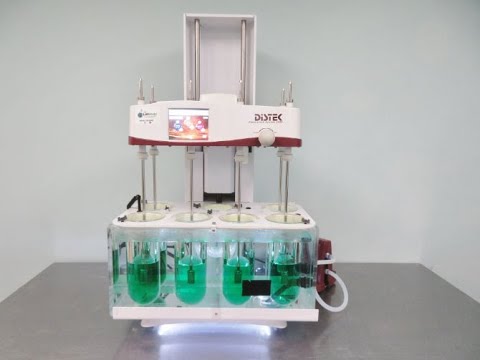

Distek 2500 Dissolution Apparatus

The Distek 2500 Dissolution Apparatus brings you a system that has a flexible configuration and expandable volume for dissolution testing. The Distek 2500 can accommodate up to 8 vessels ranging in size from 100 ml with a conversion kit, up to 4liters for flexible use in the same footprint. This system is outfitted with a deeper well for added capacity. The self-priming water circulator and heater helps to keep temperatures uniform and reducing heating times with tight control. The quick-change paddles and baskets allow users to swap out the instrument then the height is adjusted automatically for fast swaps to suit the need. In fact, the Distek 2500 can be configured as USP apparatus 1,2,5, and 6 plus intrinsic dissolution.



The Distek 2500 Dissolution Apparatus features a bright easy to navigate the full-color screen and a built-in computer that stores user profiles, method, and reports, as well as pushing out automatic qualification reminders to avoid missing validations. The icon-based navigation makes setup easy and reduces the time needed for onboarding a new user and cutting down on user error. From this control panel, users of this Dissolution Apparatus can set awake and sleep time, saving both time and energy costs.

Specifications

Distek 2500 Dissolution Apparatus Specifications:

Dissolution Vessels 6 standard, 7, or 8 optional
Volume 25 – 4000 mL (Volumes below 300 mL Require Low Volume Kit)
Water Bath One-Piece Molded Acrylic
RPM Control Range 25 – 300 RPM, Digitally Controlled, Closed Loop
RPM Resolution 0.1 RPM
RPM Accuracy ±1 RPM up to 100 RPM and ±1% >100 RPM
Motor High Torque, Permanent Magnet
Vessel Temperature Control Ambient to 55°C, TCS-0500 Thermocirculator
Temperature Resolution 0.01°C
Temperature Accuracy ±0.25°C
Shaft Wobble Less than 0.010” / 0.254 mm (Total Indicator Runout)
Environmental Tolerances Min/Max 20°C / 25°C, Min/Max 20% / 80% Relative Humidity
User Profiles 50 with Multiple Access Levels
Program Modes

Manual

Automatic (Up to 100 Pre-Programmed Methods)

Distek EVO 4300, Eclipse 5300, Opt-Diss 405, Opt-Diss 410
Dimensions 28x22x43”
Weight 120lbs
Power 115v, 50/60Hz, 10A

Included

Included with Distek 2500 Dissolution Apparatus

  • Distek 2500 Dissolution System | MSRP: $42,780.00
  • Touch Screen Controller
  • Heat Pump with Tubing
  • 7 Position Deep Well Vessel
  • Stir Rods with Paddles
  • 120V Power Cord (10A)
  • Distek Dissolution User Manual
  • 30-Day Warranty



Notes

Technical Notes

This Distek 2500 Dissolution System has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
