Description
Description
DisTek Symphony 7100 Dissolution System
The DisTek Dissolution Symphony 7100 is a bathless dissolution apparatus system that’s simple to maintain and a great way to vary multiple sample runs. The Symphony 7100 can run up to 8 samples at a time with all modules installed, and up to three methods, each with its own speed, temperature, apparatus, and duration. The modular fashion of this system lets you specify the number of positions, so you can scale up or down easily. The D-drive motor not only controls the rate of speed but also raises and lowers each shaft on its own. The compact semi-circle design of the Symphony 7100 is not only sleek but provides unobstructed access to the vessels.
The DisTek Dissolution Symphony 7100 operates with heating jackets that heat up to 99°C, reaching 37°C from ambient in just 15 minutes, and that use less energy all around. Speed, temperature, and time are controlled from the upfront display panel, which shows continuously the in-vessel temperature. These values are recorded for compliance throughout the test. The icon-based, user-friendly navigation of the full-color touch screen also means less onboarding time, saving you time and money in training.
Specifications
Specifications
Symphony 7100 Dissolution System Specifications:
| Dissolution Vessels | Up to Eight 1L Vessels |
| Volume | 500 – 1000 mL Programmable (30 – 100 mL utilizing the Distek Small Volume Conversion Kit) |
| Water Bath | One Piece Molded Acrylic |
| RPM Control Range | 30 – 300 RPM, Digitally Controlled, Closed Loop |
| RPM Resolution | 0.1 RPM |
| RPM Accuracy | ±1 RPM up to 100 RPM and ±1% >100 RPM |
| Motor | Brushless DC |
| Vessel Temperature Control | Ambient to 99°C, Independently Controlled High Watt Heater Jackets |
| Vessel Heating Rate | 2°C per Minute |
| Temperature Resolution | 0.01°C |
| Temperature Accuracy | ±0.25°C up to 45°C (Test Setting: Paddles, 900 mL, 50 RPM) ±0.50°C from 46°C to 99°C (Test Setting: Paddles, 900 mL, 50 RPM) |
| Shaft Wobble | Less than 0.010 in / 0.254 mm (Total Indicator Runout) |
| Environmental Tolerances | Min/Max 20°C / 25°C,
Min/Max 20% / 75% Relative Humidity |
| User Profiles | 50 with Multiple Access Levels |
| Program Modes | Manual
Automatic (Up to 100 Pre-Programmed Methods) Distek EVO 4300, Eclipse 5300, Opt-Diss 405, Opt-Diss 410 |
| Dimensions | 26x18x39 in |
| Weight | 78lbs |
| Power | 115v, 50/60Hz, 15A |
Included
Included
Included with DisTek Symphony Dissolution System
DisTek Symphony 7100 Dissolution System
Touch Screen Controller
7 Position Vessel with Baths
Stir Rods with Mixer
120V Power Cord (15A)
User Manual
30-Day Warranty
Notes
Notes
Technical Notes
This DisTek Symphony 7100 Dissolution System has been fully inspected and all 7 vessels are operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

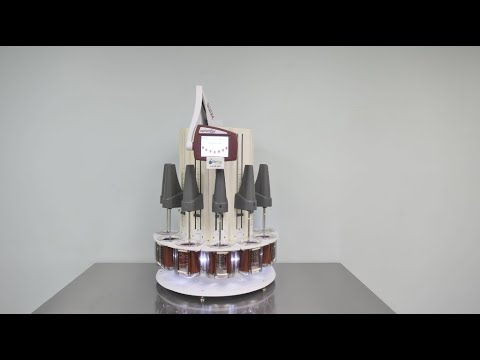

DisTek Symphony 7100 Dissolution System Video
Distek Symphony 7100 Dissolution System ID 18538
