Description
Description
Thermo EC105 Electrophoresis Power Supply
The Thermo EC105 Power Supply provides variable voltage and current for electrophoresis applications. This power supply features two sets of outputs in parallel that provide 20-250 volts or up to 500mA, with up to 75 Watts in constant voltage mode. The Owl EC105 protects the cells from overcurrent through audible and visual alarms and a single 1-amp slow blow fuse on the primary circuit. This electrophoresis power has a dial control with a brightly lit digital display, a high-low toggle to limit the voltage range, and another switch between volt and milliamp.
Specifications
Specifications
Specifications of Thermo EC105 Electrophoresis Power Supply
| Output mode: | Constant Voltage |
| Voltage Steps: | Lo Range: 20,30,40,50,60,70,80,90, I00, 110,120, 130
Hi Range: 140,150,160,170,180,190,200,210,220,230,240,250 |
| Maximum Voltage | : 250 Volts |
| Maximum Current: | 300 milliAmps @ 150-250 Volts
500 milliAmps below 150 Volts |
| Maximum Power | : 75 Watts |
| Number of Outputs: | 2 |
| Fuse Replacement: | 1 Amp slo blow |
| Temperature Range: | 0°C -40°C (non-condensing atmosphere) |
| Dimensions: | 9x6x5″ |
| Weight | 5 |
Included
Included
Included with Thermo EC105 Electrophoresis Power Supply
EC Apparatus Gel Electrophoresis Power Supply | CAT# EC 105 | MSRP: $1089.27
User Manual
120V Power Cord
30-Day Warranty
Notes
Notes
Notes on Thermo EC105 Electrophoresis Power Supply
Electrophoresis power supply has been fully tested by our service team with a clean bill of health.
Video
Video

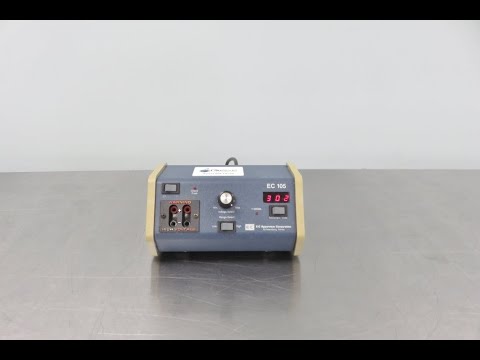

Video of Thermo EC105 Electrophoresis Power Supply
Thermo EC105 Electrophoresis System ID 19720
