Description
Description

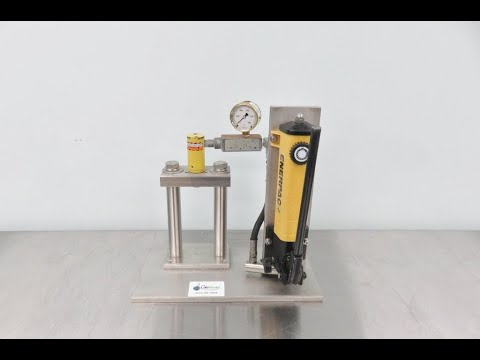

Enerpac Hydraulic Press
The Enerpac Hydraulic Press and stand is a compact way to compress tablets, with consistent pressure, and easy to use manual operation quickly and easily. This hand-operated unit is compact in design and has a two-speed operation to help reduce handle strokes, as well as less effort to reduce fatigue. The Enerpac has a maximum operating pressure of 10,000 psi, sent to the connected piston cylinder with 1 in stroke. This RC51, 5-ton cylinder with a 1″ stroke, that’s set on a heavy-duty press station and is monitored by a 5000 PSI gauge, while the internal pressure relief valve helps protect the press from overload. This piston is made of high-strength alloy steel and a heavy-duty pre-tensioned spring for faster retraction speed.
Specifications
Specifications
Hydraulic Press Specifications:
| Maximum Operating Pressure | 10,000 psi |
| Pressure Rating 1st Stage | 200 psi |
| Pressure Rating 2nd Stage | 10,000 psi |
| Cylinder Compatibility | Single-acting |
| Pump Type | Two Speed |
| Reservoir Capacity | 20 cu in |
| Usable Oil Capacity | 20 cu in |
| Maximum Flow at Rated Pressure | .055 in3/stroke |
| Oil Displacement per Stroke 1st Stage | 0.221 cu in |
| Oil Displacement per Stroke 2nd Stage | 0.055 cu in |
| Maximum Handle Effort | 78lbs |
| Piston Stroke | 0.5 in |
| Valve Operation | Manual |
| Cylinder Specifications | |
| Stroke | 1 in |
| Pressure Rating | 10,000 psi / 700 bar |
| Dimensions | 16 x 10 x 16 in |
| Weight | 31 lbs |
Included
Included
Included with Enerpac Hydraulic Press
- Enerpac Piston
- Lightweight Hydraulic Hand Pump
- Press Station with Gauge
- 30-Day Warranty
Notes
Notes
Technical Notes
This system has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Enerpac Hydraulic Press Video
Enerpac Hydraulic Press for Sale
