Fisher Isotemp 3016S Recirculating Chiller

Availability: Out of stock SKU: 7610 Category:

Description

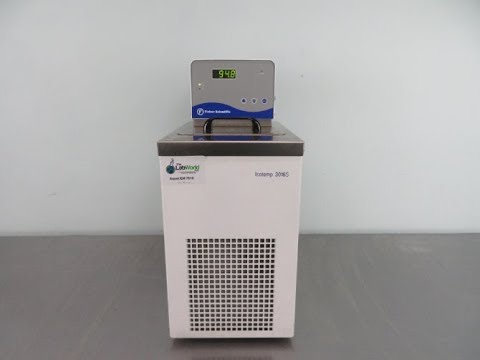

Fisher Isotemp 3016S Recirculating Chiller

The Fisher Isotemp 3016 Refrigerated Recirculating Chiller is designed for a variety of temperature application for a wide range of industries.  The Refrigerated Circulating Bath includes a well-built pump and robust cooling systems for concise temperature stability.   The recirculating water chiller small footprint design takes up minimal bench space and can easily sit under a bench as well while offering you the flexibility of either immersion use or external circulation.  The refrigeration system of this immersion circulator delivers excellent heat load removal during standard operating temps.  The built-in industrial grade pump brings more pressure, translating into efficient heat exchange.

The Fisher 3016 Recirculating Water Chiller comes with built-in safety features such as overtempt.  Users can enter the temperature parameters they want and if a temp overshoot occurs, the recirculating chiller will automatically shut down.  This allows your application to remain safe from adverse temperatures.  The Fisher Isotemp 3016 Recirculating Chiller allows for multistep programming.  User can save their process in the built-in memory banks with programs having a ten-step process with varying set point intervals ranging from 0 to 999 hours.  Contact us today to learn more about our Thermo Fisher Chiller.

Specifications

Fisher Isotemp 3016S Recirculating Chiller Specifications:

Bath Capacity 1.5 gal / 6 L
Temperature Stability ±0.05°C
Bath Temperature Range -20 to 150°C
Pump Pressure 15 liters per minute or 4 gallons per minute
Display Resolution C° or F°
Heater 800W
Cooling Capacity 350W at +20°C, 90W at ?10°C, 190W at 0°C
Power 115V 50/60Hz
Pump Style Pressure
Reservoir Dimensions ( W x D x H) 8” x 5.75” x 6”
Dimensions (W x D x H) 10 x 18 x 22”
Weight 65 lbs.

Included

Included with Fisher Isotemp 3016S Recirculating Chiller

  • Fisher Isotemp Recirculating Chiller 3016S / 13-874-28
  • Stainless Steel Lid
  • 120V Power Cord
  • User Manual
  • 30-Day Warranty

Notes

Technical Notes

This Fisher Isotemp 3016S Recirculating Chiller has been fully inspected and is operating without issue. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

Fisher Isotemp 3016S Recirculating Chiller Video

Fisher Isotemp 3016S Recirculating Chiller for sale
