Sale

Wave Bioreactor 20/50EHT

$599

SKU: 15338 Category:
Clear

Included with ID 15338
•Wave Bioreactor | CAT# GE WAVE 20/50EHT
•20L Tray with Heat Sensor
• CO2 & O2 Controls
• Bar Code Reader
• Load Cell for Weighing Media
•Touch Screen Controller
•User Manual
•120V Power Cord
•User Manual
•30-Day Warranty
• Please Note: Disposable cell bag seen in photos is not included. This is our testing equipment to demonstrate a fully working system.

1 in stock

View cart View Quote List

Description

GE Wave 20/50EHT Bioreactor System

The GE Wave 20/50EHT Bioreactor System is flexible in design and robust in execution. This system is an ideal choice for applications in cell culture, CHO cells, vaccination production, protein manufacturing, and much more. The generous tray can support cell bags and rocks anywhere from 2 – 40 rocks per minute, and at an adjustable angle between 2-12°.

The digital touch control panel lets users choose their speed, and temperature that can be set through the control panel at a range between 10 above ambient – 50°C as well as air pressure settings, for either a single bag or independently controlled side-by-side bags. This rocking motion bioreactor uses Pre-sterilized, single-use Cellbag bioreactors to protect from the risk of cross-contamination, and no cleaning, and involves minimal validation in a ready-to-use format. Users can augment the instrument with peripheral equipment such as a feed pump, a harvest pump, alarm, and data collection, and adding a barcode reader for tracking, through the ports and inputs at the rear and side.



Specifications

20/50EHT Bioreactor Specifications

Tray Dimensions 26×18″ 20-liter tray

28×24″ 50-liter tray

Rocking Angle     2° – 12°
Rocking Rate   2 – 40 rocks/min
Air Pressure 3psi / 0.2bar
Temperature Range 10 to 50°C
Dimensions    28x22x11″ 20 liter tray

31x28x14″ 50 liter tray

Weight 90 lbs
Power    100-120V, 50/60hz, 630VA

Included

Included with GE Wave Bioreactor System

Please see individual SKU ID’s for a complete list of included items.

Notes

Technical Notes

These systems have been fully inspected and have a clean bill of health. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

GE Wave 20/50EHT Bioreactor System Video

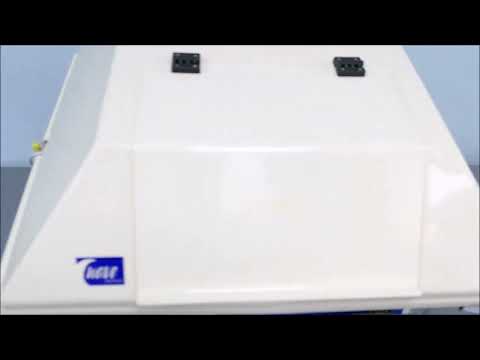

ID 15338

Wave Bioreactor 20/50EHT ID 15338

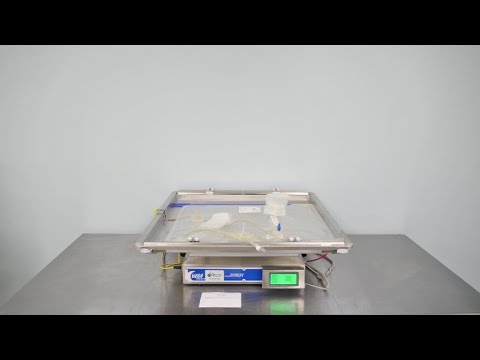

ID 15337

Wave Bioreactor 20/50EHT ID 15337

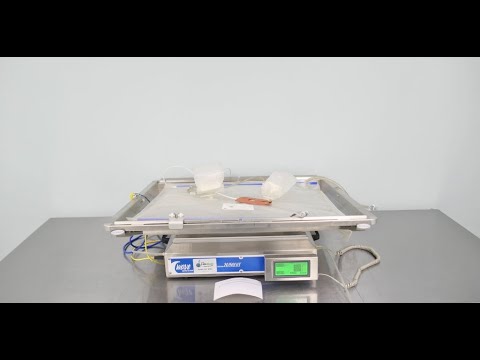

ID 15628

Wave Bioreactor 20/50EHT ID 15628

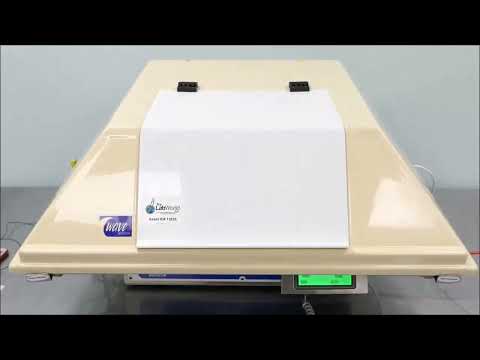

ID 15629

Wave Bioreactor 20/50EHT ID 15629

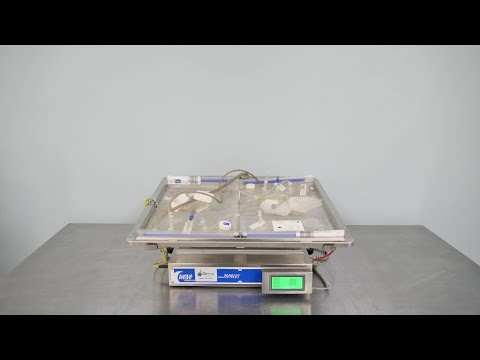

ID 15630

Wave Bioreactor 20/50EHT ID 15630

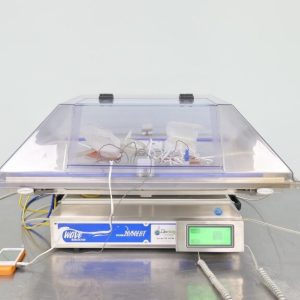

ID 16446

GE Wave Bioreactor 20/50EHT ID 16446

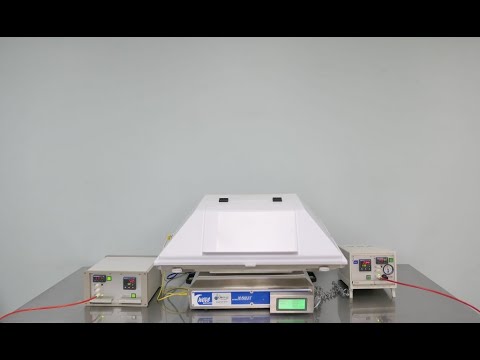

ID 16781-16784-16786
