Promega GloMax Plate Reader
The GloMax Plate Reader is a Multimode system that gives users a flexible, easy-to-use instrument ready to go right away. This multimode reader has a Windows-based color touchscreen selection on its built-in computer. Users can either set up a new protocol on this multimode microplate reader through the drag-and-drop protocol wizard tool or choose from over 50 preloaded protocols. This customization is perfect for repeated assays or having total instrument control when complete customization is needed. Users can interpret their results directly on the instrument and save setups for future use. Data from this multimode microplate reader can be exported easily via USB and analyzed wherever is most convenient.
The Promega Glomax plate reader comes with absorbance, fluorescence, and luminescence modules installed. This highly sensitive instrument measures the lowest assay signals and features low cross-talk for better results. The system installation of modules is quick and easy and can be done right in the lab without requiring additional software. Detection modules and components sold through the manufacturer can be added later as needs expand, such as BRET/FRET, UV-Vis, and an injector system.
Specifications
Specifications
Promega Glomax Explorer Specifications:
| Available Detection Modes | Luminescence, Fluorescence and Absorbance |
| Sample Format | 6-, 12-, 24-, 48-, 96- and 384-well plates |
| Read Speed | 96-well plate: less than 1 minute
384-well plate: less than 3 minutes |
| Shaking | Linear and Orbital
Intensity 100–500 cycles/minute
|
| Heating System | up to 45°C |
| Absorbance Module | |
| Light Source | Xenon flash lamp |
| Detector | Top-reading, head-on photon counting photomultiplier tube (PMT) |
| Spectral Range | 385–600nm |
| Filter Wheel Capacity | 5 absorbance filters included |
| Wavelengths Included | 405, 450, 490, 560 and 600nm 10nm band pass |
| Linear Dynamic Range | 0 – 4.0 OD, assay dependent |
| Detection Limit | 0.1 O.D. |
| Fluorescence Module Specifications | |
| Light Source | Wavelength-matched LED |
| Detector | PIN-photodiode |
| Read Position | Top reading |
| Wavelength Selection | Filter module with 5 standard excitation and emission filters. Empty filter positions are available for custom excitation and emission wavelengths. |
| Wavelengths | UV (Ex: 365nm, Em: 415–445nm)
Blue (Ex: 475nm, Em: 500–550nm) Green (Ex: 520nm, Em: 580–640nm) Red (Ex: 627nm, Em: 660–720nm) AFC (Ex: 405nm, Em: 495–505nm) |
| Detection Limit | 2fmol fluorescein/200µl |
| Linear Dynamic Range | >6 logs, assay dependent |
| Luminescence Module Specifications | |
| Detector: | Top-reading, head-on photon counting photomultiplier tube (PMT) |
| Wavelength | Range: 350 to 700 nm |
| Peak wavelength | 420 nm |
| Detection Limit | 3×10 -21 moles of luciferase |
| Linear Dynamic Range | 9 logs |
| Cross -Talk: | Less than 3 × 10–5 (white, 96-well plate, Corning 3912) |
| Power | 100 – 240 VAC, 50 – 60 Hz |
| Dimensions | 19x27x19” |
| Weight | 35 lb |
Included
Included
Included with this microplate reader
Promega GloMax Explorer Multi-Mode Microplate Reader | CAT# GM3520 | MSRP: $63,249.00
Touch Screen Controller with Built-in Software
Absorbance Validation Report
Fluorescence Validation Report
Luminescence Validation Report
User Manual
120V Power Cord (5A)
30-Day Warranty
Notes
Notes
Technical Notes
This listing has been fully inspected and is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

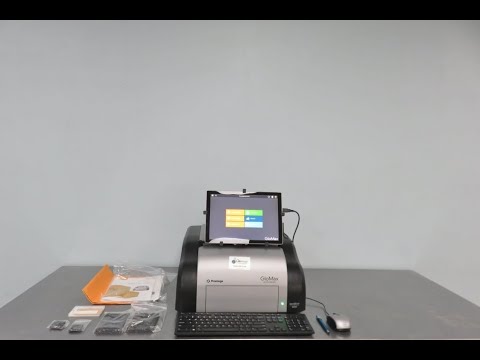

Promega GloMax Explorer Video
Promega GloMax Explorer Multi-Mode Microplate Reader ID 21135
