Hamilton Syringe Pump
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Hamilton Syringe Pump
The Hamilton MICROLAB 600 Syringe Pump provides a versatile, repeatable method of dispensing and diluting for any manual pipetting application. This lab syringe pump features an intuitive touch screen control, with icon-based navigation. From this control panel, users can select their syringe volume between 10 µL–50 mL across two syringes, allowing users to create up to a 1:50,000 dilution in one step. This helps reduce preparation time and conserves buffer solution. This Hamilton pump features a step-driven motor with high precision and a speed that ranges from 0.003-6,000 µL/sec. The range of the speed will be determined by the size of the syringe size being used.
The tubing is washed between each sample, minimizing carryover and making it ideal for applications such as atomic absorption, HPLC, GC, and ICP. Samples and diluent volume are programmed into the instrument, then the operator triggers aspiration and dispensing from the hand probe. Users can choose dual syringe dilution, serial dilution either programmed or tube to tube, and multi-sample dilution. The lab syringe pump has an operating temperature range of between 5-40°C and an rH range between 20-90% noncondensing.
Specifications
Specifications
Hamilton MICROLAB 600 Syringe Pump Specifications:
Fluid path | FEP, CTFE, PTFE, Borosilicate Glass |
Syringe size | 10 µL–50 mL |
Number of Syringe Drives | Two |
Syringe Drive Mechanism | Stepper motor driven high precision lead screw with encoder |
Sample Volume Range | 1.0 µL–50 mL |
Speed (µL/sec, syringe size dictates range) | 0.003-6,000 |
Recommended Operating Temperature Range | 41–104°F (5–40°C) |
Humidity Range | 20–90% non-condensing |
Program memory | One program stored in memory while power is on |
Dimensions | 9 x 6 x 14” |
Weight | 13 lbs |
Power | 100–240 V 1.5A max 50/60 Hz |
Included
Included
Included with this lab syringe pump
Hamilton Syringe Pump Microlab 600 Series | CAT# 61502 | MSRP: $5700.00
User Manual
120V Power Cord
30-Day Warranty
Notes
Notes
Technical Notes
This Hamilton syringe pump has been fully inspected and is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

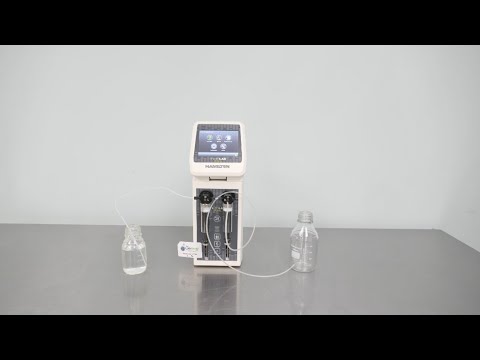

Hamilton Syringe Pump Video
Hamilton Syringe Pump ID 17702
