Description
Description
IKA M20 Universal Mill
The IKA M20 Universal Mill offers users a batch mill for grinding hard or brittle substances with optional cooling capacity and an easy-to-clean format. This lab mill is set with a star grinder ideal for fibrous substances like paper or vegetation, plastics, and items with a low weight. Cutters for the IKA Werke M20 can also be swapped out to handle other materials, sold separately by the OEM.
The Ika Werke M20 spins at a fixed speed of up to 20,000 RPM and features a double-walled chamber that can be cooled with circulating water sent through the two hose adapters. The high-grade stainless steel grinding chamber is easy to remove, making cleanup a breeze and the motor can process up to 250 ml of a substance with a Mohs hardness of up to 5, though actual capability will be dictated by the blade in use.
Specifications
Specifications
IKA M20 Universal Mill Specifications:
| Speed max. | 20000 rpm |
| Circumferential speed max. | 72 m/s |
| Useable volume max. | 250 ml |
| Feed hardness max. | 5 Mohs |
| Feed grain size max. | 7 mm |
| Internal Dimensions | 3” diameter 3” depth |
| Process type | batch |
| Operating principle | cutting/impact |
| Motor rating input | 450 W |
| Motor rating output | 225 W |
| Dimensions | 7 x 7 x 14” |
| Power | 115v, 50/60Hz, 550W |
| Weight | 15lbs |
Included
Included
Included with this lab grinding mill
•IKA M20 Lab Mill | CAT# M20-S3 | MSRP: $6800.00
•120V Power Cord (5A)
•30-Day Warranty
Notes
Notes
Technical Notes
This lab universal mill has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

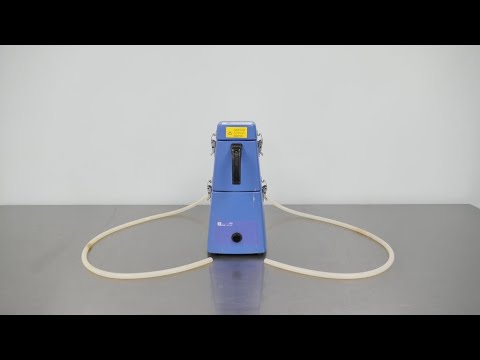

IKA M20 Lab Mill Video
IKA M20 Universal Mill ID 16665
