Description
Description
IKA Overhead Stirrer RW20
The IKA overhead stirrer RW20 is a reliable dual-range Lab Mixer used in various processes within the laboratory. These durable mixers are ideal for homogenizing tissues, disrupting cells, agitation, as well as many other applications. The slimline design of the overhead mixer allows the lab mixers to be put in small, tight places within your lab. Each unit comes with a digital display and provides constant power to the drive motor. In addition, the IKA RW20 comes with manually adjustable speed controls and runs within a range of 60 to 2000 RPM. The lab mixer comes with stainless steel drive motor with rotor attachment and allows push-through agitation even against the most viscous materials.
Specifications
Specifications
Specifications of IKA overhead stirrer
| Stirring quantity max. per stirring position (H2O) | 20 l |
| Speed range | 60 – 2000 rpm |
| Speed range I (50 Hz) | 60 – 500 rpm |
| Speed range II (50 Hz) | 240 – 2000 rpm |
| Speed range I (60 Hz) | 72 – 600 rpm |
| Speed range II (60 Hz) | 288 – 2400 rpm |
| Speed adjustment | stepless |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement | ±30 rpm |
| Viscosity max. | 10000 mPas |
| Output max. at stirring shaft | 26 W |
| Torque max. at stirring shaft | 150 Ncm |
| Torque max. at stirring shaft at 60 1/min (overload) | 300 Ncm |
| Torque max. at stirring shaft at 100 1/min | 150 Ncm |
| Torque max. at stirring shaft at 1.000 1/min | 24 Ncm |
| Nominal torque | 1.5 Nm |
| Stirring element fastening | chuck |
| Chuck range diameter | 0.5 – 10 mm |
| Hollow shaft, inner diameter | 10.5 mm |
| Hollow shaft (push-through – when stopped) | yes |
| Permissible ON time | 100% |
| Environmental Tolerances | 5 – 40 °C, 80 % rH |
| Dimensions | 8 x 15 x 24” |
| Weight | 21 lbs |
| Power | 100-115v, 50/60Hz, 87w |
Included
Included
Included with IKA RW20
- IKA Overhead Stirrer | CAT# RW20 | MSRP: $1281.00
- Impeller with Blade
- Stand
- 120V Power Cord (3A)
Notes
Notes
Notes on IKA RW20 digital
This overhead stirrer has been fully tested by our service team with a clean bill of health.
Video
Video

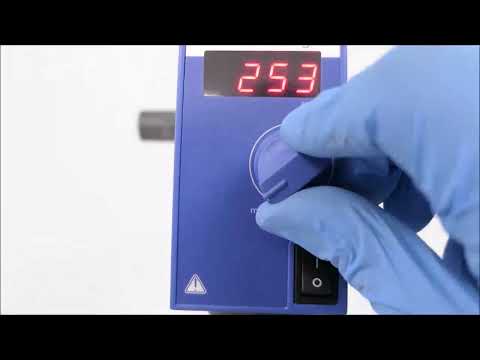

Video of IKA overhead mixer
IKA Overhead Stirrer RW20 ID 15822
