Instron 4411 Tensile Strength Tester

0 out of 5
( There are no reviews yet. )

$0

Availability: Out of stock SKU: UNK1155 Category:

Description

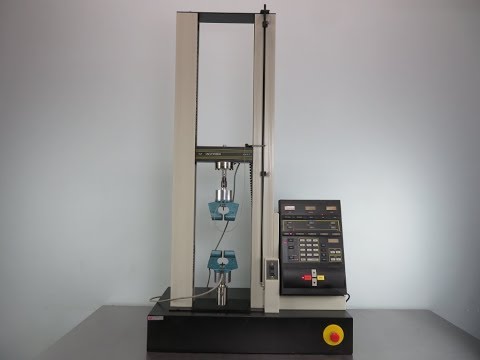

Instron 4411 Tensile Tester

The Instron 4411 Tensile Strength Tester is a universal test frame for testing materials for either tensile strength or compressive force up to 1000 lbs. This electromechanical universal testing system has a capacity of 5 kn (1125 lb) with a speed range of between 0.5-500 mm/min. This tensile strength testing machine is a great addition to any quality control laboratory or research and development. Specimens are mounted into the load frame and this tensile testing system applies tension or compression, while operations are run from the digital control panel and recorded as values in load, extension, and strain, after a test as break or peak. The Instron 4411 Tensile Strength Tester is easy to set up and control and can be connected to a computer IEEE-488 Interface port.

Specifications

Instron 4411 Tensile Tester Specifications:

Capacity:) 5 kn (1125 lb
Load cell: 5 kn
Max speed: 500 mm/min (20 in/min)
Min speed: 0.5 mm/min (.02 in/min)
Return speed: 600 mm/min (24 in/min)
Position measurement accuracy: +-0.02mm
Total crosshead travel: 42.5″”
Total vertical test space: 46″
Distance between uprights: 9 7/8″
Interfaces IEEE-488, RS-232 (printer), 10V analog recorder output on load and strain channels
Power 100/120/220/240 Volts, 3 amps 100/120/220/240 Volts, 3 amps
Dimensions 23 x 17 x 60 “
Weight 160 lbs



Included

Included with Instron 4411 Tensile Tester

  • Instron 4411 Tensile Tester
  • Pneumatic Gripper Clamps 5kN (1125 lbs)
  • Controller
  • 120V Power Cord
  • Operator’s Manual
  • 30-Day Warranty
  • Please note: buyer will need to add an air compressor.  This unit requires any standard air compressor that can go up to 70 psi.



Notes

Technical Notes

This Instron 4411 Tensile Tester has been fully inspected and is performing to expectations. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
