Description
Description

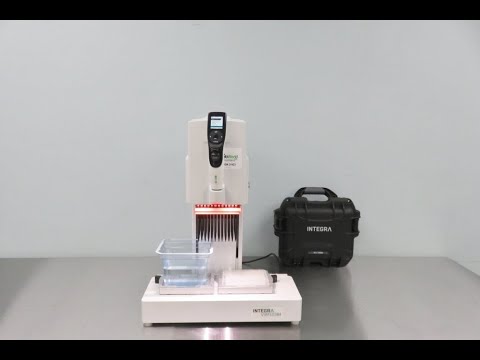

Integra VIAFLO 96 Electronic Pipetting System
The Integra Viaflo Electronic Pipetting System offers labs a flexible way to increase their productivity and throughput with hands-on or hands-free operation. This pipetting system works with ten interchangeable pipette heads in 24 or 96 wells and has a capacity running from 0.5 to 1250 ul. The affordable Integra Viaflo 96 is less of an investment than larger automated systems while still offering incredible speed and accuracy. It allows users to fill plates by hand or automatically with up to 2 deck positions.
The movement and positioning of the pipette are supported by a servo steering mechanism, reducing stress on the wrist while being fast and precise. Users can select modes from the digital control panel, such as repeat dispensing, sample dilution, pipet mix action, and manual pipetting. Navigation on the Viaflo 96 is done through the menu-based system using the upfront touch wheel.
Specifications
Specifications
Integra VIAFLO 96/384 Electronic Pipetting System Specifications:
| Volume Range | 0.5 to 1250 ul |
| Pipetting Head/Channels/Volume Range | 24/10-300ul
24/50-1250ul 96/ 0.5–12.5 µl 96/ 2–50 µl 96/ 5–125 µl 96/ 10–300 µl 96/ 50–1250 µl |
| Compatible Channels (Head Dependent) | 24, 96 channels |
| Compatible plates | 24, 96, 384 shallow and deep well |
| Bore Size Of Plastic Tubing Sets Large | 0.5 mm |
| Dimensions | 21x16x21” |
| Weight | 61 lbs |
| Power | 100-240v, 50/60Hz, 400W |
Included
Included
Included with this ViaFlo Pipetting System
Integra VIAFLO Electronic Pipetting System | CAT# VIAFLO 96/384 Liquid Handler | MSRP: $31,332.82
96 Well Head (1250µl) with case
Digital Pipette
VIAFLO 384 Base
Plate Slide Rack with Stand and Two Plates
User Manual
120V Power Cord (4A)
30-Day Warranty
Please Note: Integra ViAFLO has been fully tested by our service team and comes with a clean bill of health. We ran dispense, aspiration, and leak tests on the pipetting head to ensure it was performing to factory specifications. Dispensing was measured and validated by our service department.
Notes
Notes
Technical Notes
Please Note: Integra ViAFLO has been fully tested by our service team and comes with a clean bill of health. We ran dispense, aspiration, and leak tests on the pipetting head to ensure it was performing to factory specifications. Dispensing was measured and validated by our service department.
All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Integra VIAFLO Electronic Pipetting System Video
Integra VIAFLO Electronic Pipetting System Video ID 21923
