Jenway Spectrophotometer 7415 Nano
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Jenway Spectrophotometer 7415 Nano
The Jenway 7415 Nano Scanning Micro-Volume Spectrophotometer provides the lab with a user-friendly, compact, robust instrument that uses minimal samples. This microvolume spectrophotometer is compatible with various accessories and offers users multiple measurement modes. The 7″ touch color display is high definition and lets you view results on the screen, zoom in and out, see scans and curves, and even select points right there. This spectrophotometer has a UV and Visible wavelength range of 198-1000 nm and works with micro-volumes 0.5 to 5uL
Measurement modes for the Jenway 7415 Nano include single wavelength measurement photometric mode, concentration measurements, kinetics, a multiwavelength mode, high purity spectrum scans, quantitation, and calibration curves with up to 20 standards. Users can store results and methods in the instrument’s 3.6 GB storage or export them through multiple USB ports. The large opening sample chamber makes loading and unloading samples a snap, enabling sample volumes as low as 0.5 µL to be pipetted directly onto the read head, removing the need for cuvettes and conserving valuable samples. It’s the perfect analysis tool to measure the purity and concentration of biological samples.
Specifications
Specifications
Jenway Spectrophotometer 7415 Nano Specifications:
Stray Light | <0.5% at 340nm and 220nm |
Cloud Connected | Yes |
Source Lamp | Xenon lamp |
Beam Type | Single |
Bandwidth | 5 nm |
Min Wavelength (nm) | 198 |
Max Wavelength (nm) | 1000 |
Wavelength Accuracy | ± 2nm |
Wavelength Reproducibility | ± 0.5nm |
Pathlength (mm) | 10-100 |
Min Photometric – Transmittance (%T) | 0 |
Max Photometric – Transmittance (%T) | 199.9 |
Min Photometric – Absorbance (A) | -0.3 |
Max Photometric – Absorbance (A) | 2.5 |
Photometric Accuracy | ±1%T, ±0.01Abs at 1.000 Absorbance |
Detector | Silicon photodiode |
Concentration | -300 to 9999 |
Data Logging Capability | 3.6GB |
Dimensions | 11x20x7” |
Weight | 22 lbs |
Power | 120V 60W, 2.5 a |
Included
Included
Included with this Nano Spectrophotometer
Jenway Spectrophotometer 7415 Nano | CAT# 747501 | MSRP: $8,761.00
Touch Screen Controller
User Manual
120V Power Cord (3A)
30-Day Warranty
Notes
Notes
Technical Notes
This microspectrophotometer has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

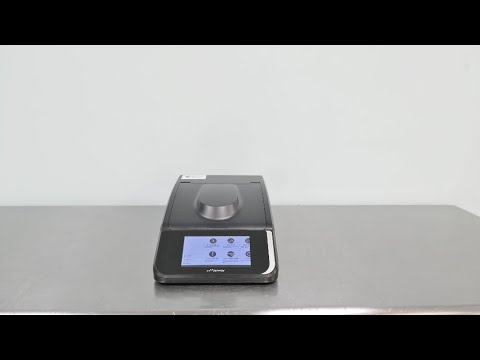

Jenway Spectrophotometer 7415 Nano Video
Jenway Spectrophotometer 7415 Nano ID 17538
