Julabo Heated Circulating Water Bath – 12 liter
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Julabo Heated Circulating Water Bath
The Julabo ME-12 Heated Circulating bath provide users with a uniform heating for both internal and external tasks. This circulator can be used for larger external systems and open systems while simultaneously heating smaller objects placed in the chamber.
This digital recirculating water bath is microprocessor-controlled with a temperature range between +20°C and 200°C and easy to read disply. Users can set temperatures, pump stage, alarm settings, as well as warning and safety functions all from the compact keypad control box with digital display, set up top, with a lockable overtemperature thermostat. This 12 liter lab bath has adjustable flow rates and pressure and an early warning system for low liquid levels.
Specifications
Specifications
Julabo ME-12 Heated Circulating Bath Specifications:
Working temperature range | 20 – 200 °C |
Temperature stability | ±0.01°C |
Setting / display resolution | 0.01 °C |
Heating capacity (kW) | 2 |
Pump capacity flow rate (l/min) | 11 – 16 l/min |
Pump capacity flow pressure (bar) | 0.22 – 0.45 |
Bath opening | 8x10x7” |
Filling Volume | 12 liters |
Pump connections | M10x1 |
Barbed fittings diameter (inner dia. / mm) | 8 / 10 |
Digital interfaces | RS232 |
Dimensions W x L x H (inch) | 12x17x18” |
Weight (LBS) | 28 lbs |
Power | 190/253v , 50/60Hz, 8A |
Included
Included
Included with this bath circulator
- Julabo Heated Circulating Water Bath | Model: ME with 12L Bath |
- MSRP: $5139.00
- Stainless Steel Reservoir Lid
- 208/230V Power Cord
- 30-Day Warranty
Notes
Notes
Technical Notes
This Julabo Bath has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

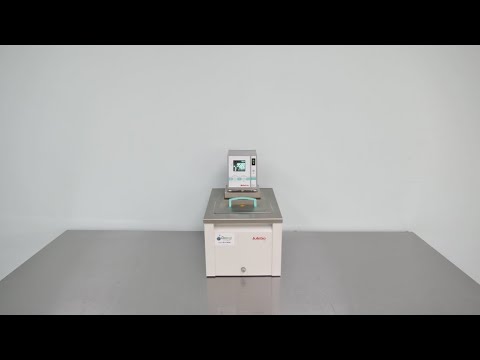

Julabo ME-12 Heated Circulating Bath Video
Julabo Heated Circulating Water Bath ID 14686
