KD Scientific 200 Dual Syringe Pump
The KD Scientific 200 syringe pump is a dual syringe infusion pump with digital control and a two-program capacity. It accommodates two syringes sized between 10ul and 140 mL and has a broad flow rate range of 5.746 µl/hr—147.07 ml/min. This sturdily constructed syringe pump has a complete metal chassis for stability and can be used in environments with 5˚ C—40˚ C and 20% to 80% RH non-condensing conditions.
The KD scientific syringe pump 200 has digital control with time settings of one second and up to 12 hours, beginning and end flow rate settings, pauses, a loop option, and the number of counts in the loop cycle. Steps within a program can be repeated up to 100 times, and programs are stored in nonvolatile memory.
The KDS210 model is an infusion pump with an added withdrawal function for added flexibility. The KDS210 has five operating modes: Infusion, Withdrawal, Infusion then withdrawal, Withdrawal then Infusion, and Continuous Cycle.
Specifications
Specifications
KD Scientific 200/210 Syringe Pump Specifications
| Accuracy | ±0.5% |
| Syringes (Min/Max) | 10 microliter – 140 milliliter |
| Flow Rate | 0.001 µl/hr -1270 ml/hr with 10 µl syringe
5.746 µl/hr – 8824 ml/hr (140 ml syringe |
| Step Rate | 1 (1/16 step) /120 secs – Min
1600 (½ step)/sec – Max |
| Linear Travel Rate | 4.95 x 10-4 cm/hr- Min
12.67 cm/min- Max |
| Drive Mechanism | Microprocessor controlled stepper motor ½ – ⅟16 microstepping, driving a leadscrew through a belt and pulley drive mechanism |
| Pusher Advance per Microstep | (1/16 step) – 0.165 micron (or 0.0000064 in) |
| Motor | 1.8′ Stepper Motor |
| Step Rate | 120 sec/µstep-min
0.000625 sec/µstep -max |
| Operating Temperature | 5˚ C – 40˚ C (41˚ F – 104˚ F) |
| Humidity | 20% to 80% RH noncondensing |
| Mode of Operation | Continuous |
| Dimensions | 22x10x6” |
| Weight | 10 lbs |
| Power | 100-120V, 50/60Hz, 0.25A
200-240V, 50/60Hz, 0.125A |
Included
Included
Included with the KDS 200
Please see individual SKU ID’s for a complete list of included items.
Notes
Notes
Technical Notes
This pump has been fully tested and comes with a clean bill of health. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
KDS Dual Syringe Pump Video
ID 21996

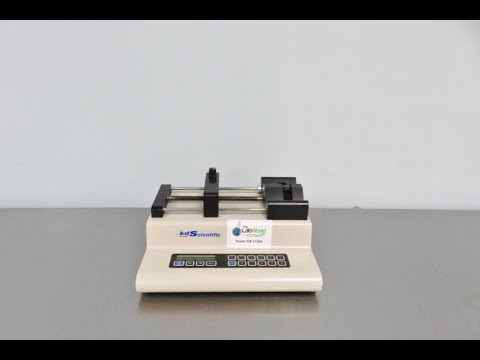

KD Scientific 200 Dual Syringe Pump Video ID 21996
ID 24405-24406

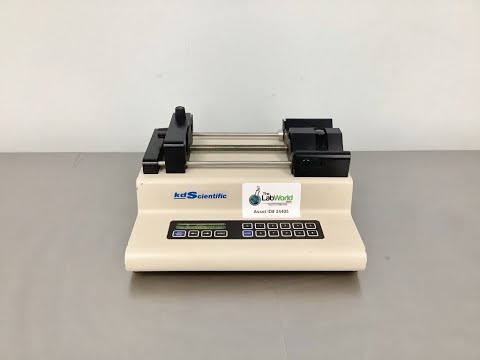

KD Scientific Syringe Pump KDS-210 ID 24405
