Description
Description
KD Scientific 230 Syringe Pump
The KD Scientific 230 Multi-syringe pump holds up to 10 syringes in this infuse/withdrawal pump. This pump has multiple modes to work with, including infusion, withdrawal, infusion, then withdrawal, withdrawal, then infusion, and a continuous cycle. This syringe infusion pump accommodates several configurations of syringe sizes: 1-10 syringes between 10ul and 10 mL, 1-6 syringes 20ml-60ml in size, and 1-4 syringes that are 100ml-140ml. T and has a broad flow rate range of 0.001 µl/hr – 8824 ml/hr.
The KD scientific syringe pump 230 has digital control with time one second and up to 12 hours, beginning and end flow rate settings, pauses, loop option, and how many counts in the loop cycle. Steps within a program can be repeated up to 100 times, and programs are stored in non-volatile memory. This sturdily constructed syringe pump has a complete metal chassis for stability and can be used in environments with 5˚ C – 40˚ C and 20% to 80% RH non-condensing conditions.
Specifications
Specifications
KD Scientific 230 Syringe Pump Specifications:
| Accuracy | +/-<1% |
| Syringe Size (Min/Max) | 10 µl to 10 ml (up to 10)
40 ml to 60 ml (up to 6) 100 ml to 140 ml (up to 4) |
| Number of syringes | 10 Maximum |
| Flow Rate | 0.001 µl/hr with 10 µl syringe
8824 ml/hr (140 ml syringe) |
| Drive Motor | 1.8′ Stepper Motor |
| Microprocessor Motor Drive Control | 1/16 microstepping |
| # microsteps/one revolution of lead screw | 6400 |
| Pusher Travel Rate | 120 sec/µstep -min
0.000625 sec/µstep-max |
| Operating Temperature | 5˚ C – 40˚ C (41˚ F – 104˚ F) |
| Humidity | 20% to 80% RH non condensing |
| Mode of Operation | Continuous |
| Dimensions | 11x13x7 |
| Weight | 12lbs |
| Power | 100-120v, 50/60Hz, 0.25A |
Included
Included
Included with this Infusion Pump
KD Scientific 230 Syringe Pump | CAT# 78-0230NLSU | MSRP: $5400.00
Multi Syringe Head
User Manual
120V Power Cord (2A)
30-Day Warranty
Notes
Notes
Technical Notes
This KD Scientific Syringe Pump has been thoroughly inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

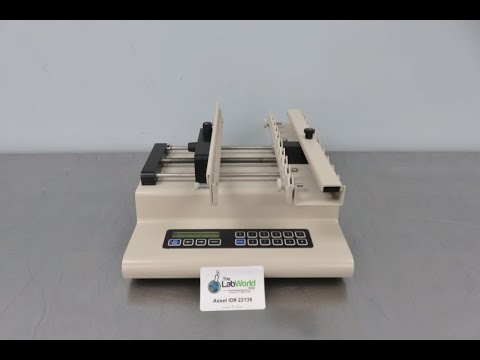

KD Scientific 230 Syringe Pump Video
KD Scientific 230 Syringe Pump ID 22138
