Description
Description
KD Scientific LEGATO Syringe Pump
The KDS Legato is an Infuse only syringe pump controlled by a resolution touch screen and is outfitted with a large syringe multi rack (Legato 200 only). The compact syringe infusion pump allows users to set definable flow rates with selectable target volumes, or timed values for a flexible control of total infusion volume. Users can set these parameters from the full color, touch screen interface that makes for easy programming and stores them for repeated use. Users can store up to 40 programs each with 20 steps.
This syringe pump can also be operated on it’s side to save space with a tilt-able display. The syringe infusion pump has an accuracy of ±0.35% and a wide dynamic flow range from 5 ml/min to 215.803 ml/min. The Advanced Micro stepping technique of this infusion pump help to greater reduce pulsation for a steady flow. The KD Scientific Legato 200s are set up with a large capacity 4 syringe rack, holding syringes from 60ml up to 140 ml.
Specifications
Specifications
KD Scientific Legato 200 Syringe Pump Specifications:
| Capacity | 0.5 µl to 140 ml |
| Drive Motor | 1.8 degree Stepper Motor |
| Motor Drive Control | Microprocessor with 1/16 microstepping |
| Linear Force (Maximum) | 34 kg (75 lbs) @ 100% force selection |
| Number of Microsteps per one Revolution of Lead Screw | 6400 |
| Step rate (Minimum) | 27.5 sec/µstep |
| Step rate (Maximum) | 26 µsec/µstep |
| Pusher Travel Rate – (Minimum) | 0.36 µm/min |
| Pusher Travel Rate – (Maximum) | 190.80 mm/min |
| Flow Rate (Minimum) | 5 ml/min (0.5 µl syringe) |
| Flow Rate (Maximum) | 215.803 ml/min (140 ml syringe) |
| Dimensions | 13x11x7” |
| Weight | 12lbs |
| Power | 100-240v, 50/60Hz, 0.5amps |
Includes
Includes
Included with KD Scientific Legato 200 Syringe Pump
KD Scientific Syringe Pump Legato 200 | CAT# 78-8200 | MSRP: $4660.00
Touch Screen Controller
120V Power Cord
30-Day Warranty
Notes
Notes
Technical Notes
Syringe Infusion Pump has been fully tested and comes with a clean bill of health. We ran multiple tests during inbound QC testing touch screen controller, electronics, pressure and power. Unit passed all quality control tests and is ready to ship.
Video
Video

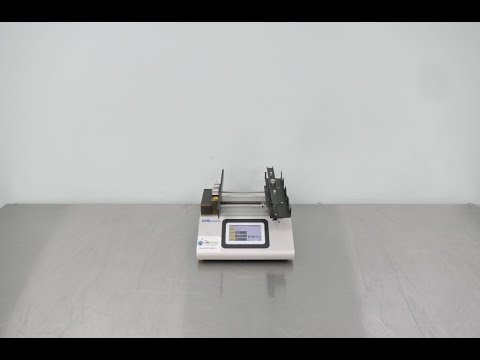

KD Legato 200 Video
KD Scientific LEGATO 200 Syringe Pump ID 14030
