KNF Vacuum Pump

Availability: Out of stock SKU: 15955-15957-15958 Category:

Description

KNF Vacuum Pump

The UN726.1.2FTP is an oil free, low maintenance diaphragm Vacuum Pump. The PTFE coated molded diaphragms eliminates any peeling of the heads under highly aggressive or corrosive gases. Not for use with any liquids or particulates. The twin “V’ head design pumps atmospheric pressures down to 50 Torr/28 in. Hg with a free flow capacity of 30 liters/minute. Please be aware that you should only start this vacuum pump under atmospheric pressures and care should be taken to eliminate a vacuum load after using. This KNF Neuberger vacuum pump can also be used as a low-pressure air compressor with a maximum pressure of 20 PSIG. In the event of some contamination to occur inside of the pump heads, users can disassemble and reassemble the valves and heads within minutes without the use of special tools or training.

Specifications

Specifications of KNF vacuum pump

Model: UN726.1.2FTP
Max vacuum 50 Torr/28 in. Hg
Max pressure 20 PSIG
Free-Flow Cap 30 liters/minute
Ambient temperature 40°F and 104°F (5°C and 41°C).
Material PTFE coated molded diaphragm
Oil Oil-Free
Voltage 115
Amperage 2
HZ 60
Exterior Dimensions (inches) 12x12x9”
Weight (pounds) 15lbs

Included

Included with KNF diaphragm pump

  • KNF Vacuum Pump | Diaphragm | CAT# UN726.1.2 FTP
  • 120V Power Cord
  • 30-Day Warranty
  • Please Note: Vacuum Meter seen in photos is not included.   This is our testing equipment to demonstrate a fully working system.

Notes

Notes on KNF diaphragm vacuum pump

The KNF laboport vacuum pump has been fully tested by our service team with a clean bill of health.

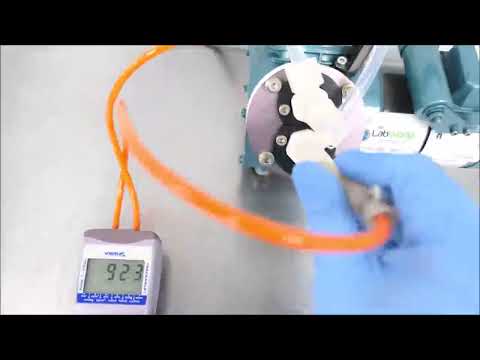

Video

Video of KNF Neuberger vacuum pump

KNF Vacuum Pump ID 15958
