Laboratory Freezer Undercounter
The Laboratory Freezer provides reliable, mechanically controlled freestanding or under-counter placement, with convenient storage. This under-counter lab freezer has a temperature range of -25° to -15°C (-13 to 5°F) and is constructed with a solid door, and a white enameled exterior. Inside this lab, the freezers are fixed height evaporator shelving and three pull-out drawers allowing you to store bulk loose items in an organized and contained manner.
This 4-cu ft -20°C laboratory freezer is a freestanding under-counter model with manual defrost and a probe hole at the back for additional monitoring options. To properly function this freestanding laboratory freezer needs 4” in the rear and 3” on the sides of clearance for proper airflow and efficiency and is not intended for built-in or enclosed installation. The innovative natural hydrocarbon coolants help make this an energy-efficient and ecological choice, meeting EPA and SNAP requirements.
Specifications
Specifications
Laboratory Freezer Undercounter HCUCFS-0420 Specifications:
| Temperature Range | –25 to –15°C (–13 to 5°F) |
| Volume | 113 L (4 cu. ft.) |
| Interior Dimensions | 16 x 16 x 26″ |
| Defrost | Manual |
| Door | Solid Door |
| Refrigerant | R600A |
| Weight | 100lbs |
| Power | 115V, 60Hz, 0.9A |
| Dimensions | 20 x 21 x 31″ |
Included
Included
Included with this laboratory freezer
- Laboratory Freezer Undercounter | CAT# HCUCFS-0420 | Unused Scratch & Dent | MSRP: $1137.11
- Temperature Validation Report
- Shelves
- User Manual
- 120V Power Cord (1A)
- 30-Day Warranty

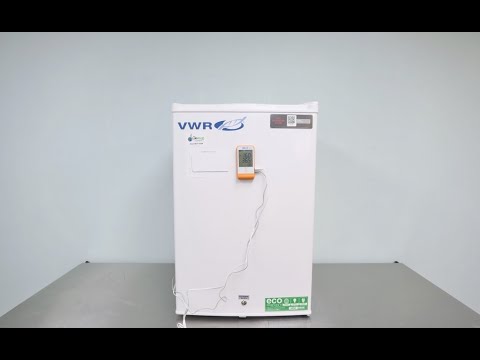

- Please Note: Orange datalogger seen in photos is not included. This is our testing equipment to demonstrate a fully working system.
Notes
Notes
Technical Notes
This small lab freezer has been fully inspected and comes with a current temperature validation. Please Note: Orange datalogger seen in photos is not included. This is our testing equipment to demonstrate a fully working system. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Laboratory Freezer Undercounter Video
Laboratory Freezer HCUCFS-0420 ID 15305
