Leica RM2165 Rotary Microtome
The Leica RM2165 is a highly adjustable and reliable biomedical research rotary microtome. This automated microtome can be operated either fully motorized or hand-driven at a section thickness setting from 0.25- 60 um, with a vertical stroke of 70µm. This rotary microtome further breaks down ranges into coarse and fine ranges, from 0,25 µm, 0,5 µm, 1 µm, 1,5 µm, and in increments of 1 µm from 2 -20 µm and increments of 5 µm from 20-60 µm. The motorized stepper will advance 28 µm ±1 µm.
The compact design of the Leica Rm2165 allows for use in any lab bench or workspace. Sectioning can be done either in a single or continuous stroke or manually operating with the handwheel or rocking mode. The rocking mode of this rotary microtome is particularly efficient and fast for small specimens. This microtome is operated from the control panel with a digital display, including section and trimming thickness, sectioning speed, coarse and fine specimen advance, sectioning window size, and sectioning mode. Additional accessories are sold and available from Leica Biosystems.
Specifications
Specifications
Leica RM2165 Rotary Microtome Specifications:
| Cut thickness range | 0.25- 60 um
0,25 µm, 0,5 µm, 1 µm, 1,5 µm increments of 1 µm from 2 -20 µm increments of 5 µm from 20-60 µm |
| Advance of the object | 28 µm ±1 µm
advance by stepper motor |
| Vertical stroke | 70 µm |
| Max. Cutting range without retraction | 65 µm without sample orientation |
| Max. Cutting range with retraction | 60 µm |
| Retraction of the object | in manual cutting 5-100 µm with 5 µm
increments can be turned off in motorized cutter, speed function can be turned off |
| Motorized approach | 300 µm/s et 900 µm/s |
| Cutting Speed | 0; 0,5 – 420 µm/s |
| Moving the knife holder base | north-south ± 25 µm
east west ± 20 µm |
| Orientation | 8° Horizontal
90° Rotation |
| Dimensions | 23x22x13” |
| Weight | 85lbs |
| Power | 100/120/230/240 v, 50/60 hz, 340 va |
Included
Included
Included with Leica RM2165 Rotary Microtome
Lecia Microtome | CAT#A RM2165 | MSRP: $21,665.00
Foot Switch
Blade Locking Head
User Manual
120V Power Cord (15A)
30-Day Warranty
Notes
Notes
Technical Notes
This Leica RM2165 has been fully inspected and is performing to expectations. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

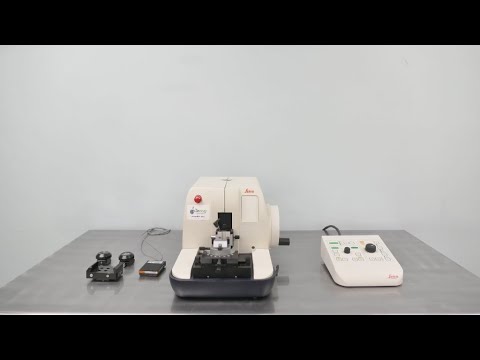

Leica RM2165 Rotary Microtome Video
Leica Microtome RM2165 ID 18892
