Leica TP1020 Tissue Processor

0 out of 5
( There are no reviews yet. )

Availability: Out of stock SKU: 2963 Category:

Description

Leica TP1020 Tissue Processor

The Leica TP1020 Tissue Processor offers you automation of fixation, dehydration, and infiltration of histological tissue samples. This tissue processor uses reagent stations, wax baths, fixatives, and alcohol for gentle specimen processing with a high level of specimen safety. The wax baths of this semi-enclosed benchtop processor can be filled with either wax pellets or paraffin wax. Embedding cassettes are placed inside the tissue basket and moved from station to station, moved up and down at each station to ensure proper agitation, and then pausing for 60 seconds to allow excess to drip off, minimizing carryover.

The Leica TP1020 Tissue Processor can handle a maximum of 100 cassettes and is digitally controlled from the upfront display panel. Operations are shown in real time through an LCD screen that lets users decide whether to operate manually or automatically. In the event of a power failure, specimens within this automatic tissue processor are protected. Even overnight, samples remain immersed in their station until power is restored and the process can resume. If there’s an extended power failure, samples in critical excess immersion will be displayed.

Specifications

Leica TP1020 Tissue Processor Specifications:

Diameter of rollers 610 mm
Wax baths 2
Wax baths capacity 1.8 Liters
Wax baths temperature range 45 °C – 65 °
Standard tissue basket capacity max 100 cassettes
Excess temperature cutout  75 °C ± 4 °C
Reagent containers 10
Reagent container capacity 1.8 liters
Standard tissue baskets 1
Programs 9, freely selectable
Programmable infiltration time per station 99 h 59 min
Delayed start 9 days
Drain time 60 s
Power 50-60 Hz, 100/120/230/240 V
Dimensions 32 x 32 x 24 in
Weight 134 lbs

Included

Included with Leica TP1020 Tissue Processor

  • Leica TP1020 Tissue Processor #TP 1020-1-1
  • Canisters
  • Lid
  • Power Cord
  • Operator’s Guide
  • 30-Day Warranty

Notes

Technical Notes

This Leica TP1020 Tissue Processor has been thoroughly inspected and the unit cycled and two paraffin containers both heated without issue. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please let us know.

Video

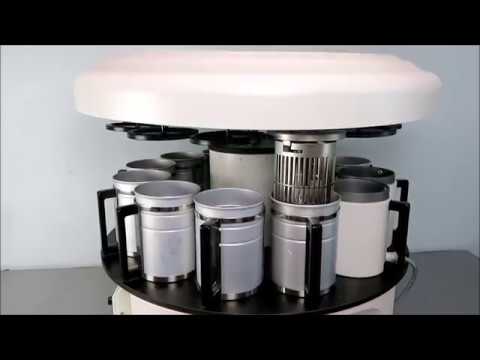

Leica TP1020 Tissue Processor Video

Leica TP 1020 Tissue Processor
