Description
Description
Cole Parmer Masterflex Peristaltic Pump
The Cole-Parmer 7520-60 Master Flex Console Drive gives you a straightforward, analog pumping solution with reversible flow and remote capabilities. The drive has a speed range of 6 to 300 rpm, and a flow rate of between .36-1700 mL/Min, with a reversible motor and a soft start. This peristaltic pump has an analog turn knob. The analog nature of this console drive means settings are preserved even when the pump is turned off. The 1/10 hp motor of this Masterflex peristaltic pump provides you with a smooth pulse-free operation and 2% speed control. The unit is also compatible with Standard, Easy Load, Easy-Load II, Quick Load, High-Performance, Cartridge, PTFE-Tubing, and PTFE-Diaphragm heads.
Specifications
Specifications
Cole Parmer Masterflex Peristaltic Pump Specifications:
| Pump Series | L/S |
| Control Type | Digital Variable Speed |
| Speed | Variable |
| Speed Control | ±2% (1-turn speed control) |
| RPM | 6-300 |
| Max Flow Rate (ml/min) | 1700 |
| Min Flow Rate (ml/min) | 0.36 |
| Reversible Motor | Yes |
| Type of pumps Heads Accepted | Standard, Easy-Load, Easy Load II, Quick Load, High Performance, Cartridge, Multichannel, PTFE Tubing, PTFE Diaphragm |
| Number of Pump Heads Accepted | 2 |
| Motor (watts) | 75 |
| Drive IP rating | IP 23 |
| Power (VAC) | 90 to 130 |
| Power (amps) | 1.5 |
| Drive Length (in) mm | (11.5) 292 |
| Drive Width (in) mm | (7) 178 |
| Drive Height (in)mm | (7) 178 |
| Motor HP | 1/10 |
| Easy Load II Head 77200-50 | |
| Min/ Max Flow Rate mL/min | 0.0012/ 2300 |
| Min/ Max Flow Rate per channel mL/min | 0.0012/ 2300 |
| Occlusion | Adjustable |
| Optimum RPM Range | 0.02 to 600 |
| Rollers | 4, stainless steel |
| Suction Lift | 29 ft / 8.8 m |
| Gear Ratio | 1:1 |
| Tubing Sizes Accepted | L/S 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18 |
Included
Included
Included with Cole Parmer Masterflex Peristaltic Pump
Cole Parmer Masterflex Peristaltic Pump | CAT# 956-0025
120V Power Cord
30-Day Warranty

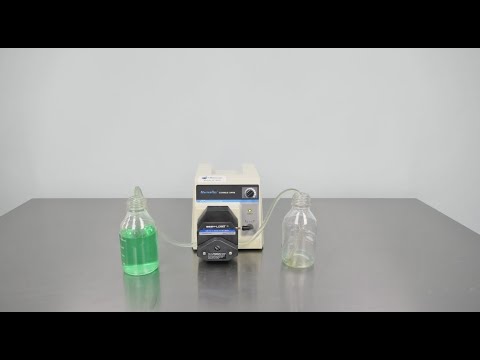

Please Note: Glass bottles seen in photos are not included. This is our testing equipment to demonstrate a fully working system.
Notes
Notes
Technical Notes
This unit has been fully inspected and runs in both directions without issue. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Cole Parmer Masterflex Peristaltic Pump Video
Cole Parmer Masterflex Peristaltic Pump ID 18444
