Mettler Toledo Moisture Analyzer HB43-S
- Description
- Specifications
- Included
- Notes
- Video
Description
Description
Mettler Toledo Moisture Analyzer HB43-S
The Mettler Toledo Moisture Analyzer HB43-S provides a method to determine the moisture content of nearly any substance quickly and easily with the thermogravimetric principle. By combining heat and weight, users can measure a variety of samples, including food and cannabis. To start this moisture balance weighs the sample, then weighs continuously throughout a heating cycle as moisture vaporizes, displaying the reduction in moisture.
After drying is complete a final result is shown on the large digital display. Users of the Mettler Toledo Moisture Analyzer HB43-S can then export the information with the touch of a button to an attached printer, or to a PC through the RS232C interface for easy data logging. Users also have access to a library of 100 predefined methods, toggle between two frequently used methods, or create two of their own.
The heating module of this moisture analyzer heats to full power quickly to a high temperature of 200°C. The uniform heating means not only you can use smaller samples, but it also means good repeatability. Users can preselect all parameters of measurement such as drying time, temperature, automated or timed shut-off, and sample size. Settings for the Mettler HB43-S have held memory so that in the event of a power failure they’re preserved. The Mettler Toledo hb43 guides users on the display step by step so you always know which stage of measurement is happening and what comes next. The keypad can also be locked to prevent accidental tampering.
Specifications
Specifications
Mettler Toledo Moisture Analyzer HB43-S Specifications
Dryer | |
Temperature range | 50–200 °C |
Temperature increment | 1 °C |
Heating module adjustment | with temperature adjustment set HA-TC or HA-TCC |
Warm up time | 60 minutes after connecting to power, or immediately from standby mode. |
Balance | |
Minimum sample weight | 0.5 g |
Maximum sample weight | 54 g |
Balance adjustment | with external weight, 20 g ± 0.1 mg |
Stability detector | with symbol in display |
Balance resolution | 1 mg |
Result resolution | 0.01% |
Repeatability (sd) with 2 g sample | 0.15% |
Repeatability (sd) with 10 g sample | 0.05% |
Data | |
Method library | 100 |
Time | date system clock, fail safe |
Operational settings | read-only memory, fail safe |
Switch-off criteria: | 5 levels, manual, timed or free |
Drying program | Standard drying, fast, LP16 mode |
Reset protection | by locking the menu settings |
Drying time | 1 to 480 minutes in 1 minute increments. |
Evaluation | |
Display modes | 5 modes: moisture content (MC), dry content (DC), weight (g), ATRO moisture content (AM), ATRO dry content (AD) |
Environmental Tolerances | 5-40°C, 80% rh @ to 30°C |
Pan dimensions | 3 x 3” |
External Dimensions | 9x15x6” |
Weight | 10 lbs |
Power | 100 V – 120 V, 50/60Hz, 4A |
Included
Included
Included with Moisture Analyzer
- Mettler Toledo Moisture Analyzer | CAT# HB43 | MSRP: $9480.00
- Sample Holder
- User Manual
- 120V Power Cord
- 30-Day Warranty
Notes
Notes
Technical Notes
This analyzer has been fully inspected and is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

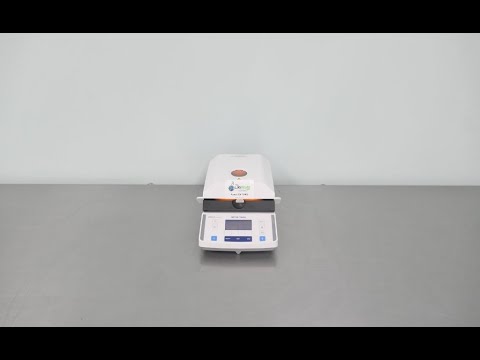

Mettler Toledo Moisture Analyzer HB43-S Video
Mettler Toledo Moisture Analyzer HB43-S ID 15905
