Description
Description
MilliQ Reference Water Purification
The Millipore Milli Q Reference Water Purification system is a fast and reliable method of obtaining ultra-pure water. Water is purified in the first step to reach a resistivity of 18.2 MΩ.cm and a TOC value below 5 ppb. From here, the water is sent to the Application Pak where contaminants are removed just before water leaves the system. This results in Ultra-Pure water for your reagents and experiments. The dispensing wand is attached by a 75cm tube that allows you to reach the sink or other areas easily. The digital control screen is brightly lit and easy to read and features user-friendly controls with detailed procedures for water purification. Maintenance is minimal and mostly consists of replacing consumables once they have run out. The consumables have an RFID tag that allows the system to automatically register the catalog and lot number for superior traceability.
Specifications
Specifications
Milli-Q Reference Specifications
| Feed Water Specifications | |
| Feed Water Quality | Elix®, RiOs™, distilled or DI water with conductivity < 100 μS/cm and TOC < 50 ppb |
| Feed water connection | 1/2 in. Gaz M |
| Feed water pressure | 0 – 0.3 bar |
| Feed water temperature | 5 – 35 °C |
| Product Water Quality | |
| Manual dispense flow rate | Adjustable between 50 and 2000 mL/min |
| Automatic dispense volume | 100 mL
250 mL to 5 L by 250 mL increments 5 L to 60 L by 1 L increments |
| Volumetric dispense accuracy | 3 % for volumes between 250 mL and 60 L |
| Volumetric dispense dispersion | CV < 3% for volumes between 250 mL and 60 L |
| Resistivity | 18.2 MΩ.cm at 25 °C |
| TOC | ≤ 5 ppb (μg/L) |
| Bacteria | < 0.01 CFU/mL |
| Pyrogens (endotoxins) | < 0.001 EU/mL (pyrogen-free) |
| RNases | < 1 pg/mL (RNase-free) |
| DNases | < 5 pg/mL (DNase-free |
| MilliQ Reference System Dimensions | |
| Dimensions | 17x18x28” |
| Weight | 33 lbs |
| Power | |
| Electrical Requirements | 100-230V, 50/60Hz |
Included
Included
Included with the Millipore Milli-Q Reference Water Purification System
MilliQ Reference Water Purification System | Cat# Z00QSVC01
Q-Gard T2 Purification Cartridge Installed
Quantum TEX Polishing Cartridge Installed
Millipak Express 40 0.22 µm Filter
Dispensing Wand
120V Power Cord
30-Day Warranty
Please note: Water Carboy seen in photos is not included. This is our testing tool to demonstrate a fully working water purification system.
Notes
Notes
Technical Notes
This water purification system has been fully tested and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

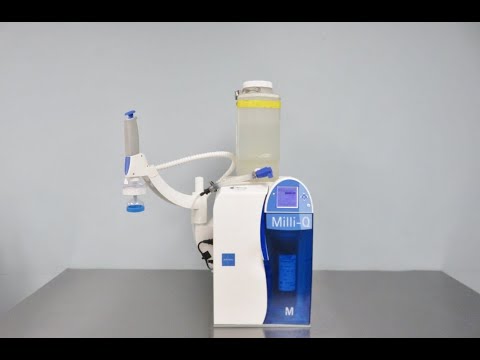

MilliQ Reference Video
Millipore Milli Q Water Purification System Video ID 22070
