Sale

Molecular Devices AquaMax 2000 Microplate Washer

$4,495

SKU: 22031 Category:
Clear

Included with ID 22031
Molecular Devices AquaMax 2000 Microplate Washer | CAT# AQ2K | MSRP: $21,736.55
Reagent & Waste Bottles as seen in photos
384 Well Manifold
Built-In Vacuum Pump
StakMax Plate Stacker with Racks
Vacuum Tubing
Communication Cable
User Manual
120V Power Cord (3A)
30-Day Warranty

$4,495

1 in stock

View cart View Quote List

Description

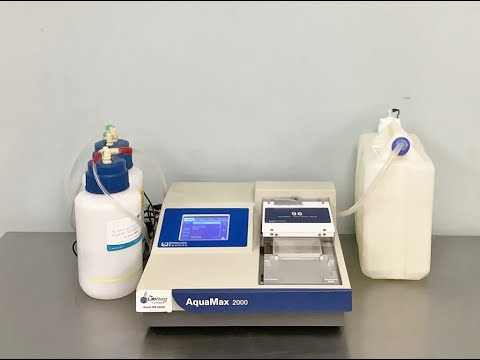

Molecular Devices AquaMax 2000 Microplate Washer

The Molecular Devices AquaMax 2000 Microplate Washer is a fully self-contained system, that can be configured for both 96- and 384-well plate washing applications. The compact design of the Aquamax eliminates the need for external pumps or operating computers, so it takes up less space on the bench than conventional models. Dispensing Volume is 10 – 400 µl/well with three shaking speeds for up to 600 seconds.

The unique touch screen and the onboard operating system hold up to 100 programs with 50 steps each allowing for users to set up plate washing functions and maintenance routines. To keep the plate washer in tip-top shape, there is also a convenient one-touch auto-clean function that completely evacuates the entire fluid path. To further prevent build-up, this innovative microplate washer lets users define when the auto shut down engages to fully empty and dry the system. To facilitate quick assembly of the buffer and solution bottles, color-coded tubing and inlets are used to get you up and running quickly.

The AquaMax 2000 Plate Washer can be used for biochemical assays, removing unbound material and unreacted reagents, and for cell-based assays, there is the option for 96 or 384 well cell wash heads with angled pins to allow extremely gentle washing. The 96 and 384 interchangeable wash heads can be installed in seconds, thanks to a head latch mechanism with no recalibration necessary. Aspiration and dispensing happen simultaneously for faster and more precise processing, and a standby feature keeps the system primed for an instant start-up.

Specifications

Molecular Devices AquaMax 2000 Microplate Washer Specifications:

Shaking Speed 3 Speeds up to 600 sec. max.
Dispensing Volume 10 – 400 µl/well
Wash Times 96w Single cycle, 300 µl/well, 11 sec; three cycles, 300 µl, 26 sec.
Wash Times 384w Single cycle, 100 µl/well, 12 sec; three cycles, 100 µl, 28 sec.
Fast Wash Times (Optimized for Speed) 96-well wash head, 300 µl/well, three cycles, 14 sec; 384-well wash head, 100 µl/well, three cycles, 16 sec
Precision 96-well: < or = 4% CV at 300 µl; 384-well: < or = 3% CV at 100 µl
Process time with integrated, optional StakMax Microplate Stacker (Fast Wash, 96 Wash Head, 300 µL/well, three cycles) < 13 min. for 20 plates
Compatible Microplates SBS-conforming 96- and 384-well; flat, U- or V-bottom plates
Residual volume, 96 ≤ 5 µL Residual volume, 96 ≤ 5 µL
Residual volume, 384 ≤ 2 µL Residual volume, 384 ≤ 2 µL
Dimensions 21x19x9”
Weight 43 lbs
Power 100-240v, 50/60hz, 1.75a

Included

Included with this Molecular Devices Plate Washer

Please see individual SKU ID’s for a complete list of included items.

Notes

Technical Notes

This plate washer has been fully inspected and is operating without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

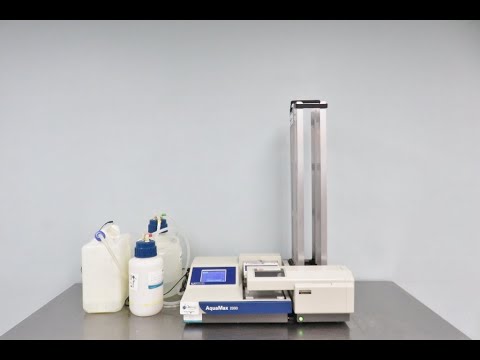

Molecular Devices AquaMax 2000 Microplate Washer Video

ID 22031

Molecular Devices AquaMax 2000 Plate Washer Video ID 22031

ID 24626

Molecular Devices AquaMax 2000 Plate Washer Video ID 24626

ID 25924

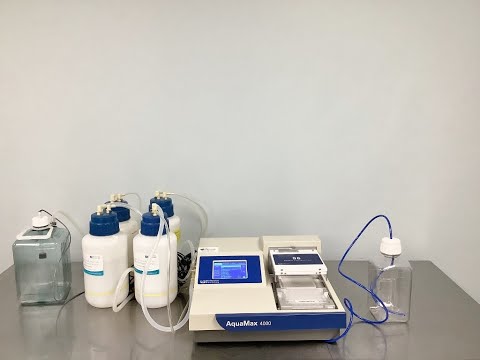

Molecular Decvices AquaMax4000 Video ID 25924
