Motic AE2000 Inverted Microscope
$1,499
- Description
- Specifications
- Included
- Notes
- Video
Description
Description

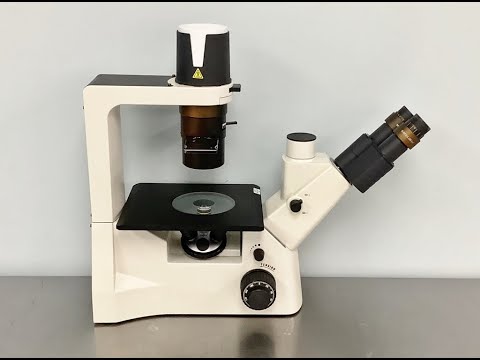

Motic AE2000 Inverted Microscope
The Motic AE2000 Inverted Phase Contrast microscope offers a stable design and flexible setup for your lab. This lab compound microscope is ideal for university, routine clinical, and laboratory environments. The Motic is equipped with brightfield and phase contrast capabilities, featuring a quadruple-sided objective turret.
The optical system is a color-corrected infinity setup with a trinocular head on a 360° swivel. The eyepiece interpupillary distance is adjustable to accommodate different users, ranging from 48 to 75mm. For focus adjustment, the controls are comfortably placed at the base, with a focusing stroke of 8mm and a fine focus precision of 2 μm.
Specifications
Specifications
Motic Inverted Microscope Specifications
Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
Optical system | Color Corrected Infinity Optical System (CCIS) |
Condenser | ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder |
Diaphragm | Iris diaphragm |
Diopter adjustment | On both eyepieces, +/- 5 diopter |
Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |
Fine focus precision | 2µm |
Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
Focusing stroke | 8mm |
Free working distance | Working distance without condenser 184mm |
Illumination features | Auto on/off |
Inclination | 45° inclined |
Interpupillary distance | 48-75mm |
Nosepiece | Left side facing quadruple |
Objective classification | CCIS Plan Achromatic, DIN |
Objective mounting thread | W 4/5″x1/36″ (RMS standard) |
Phase contrast | Slider |
Stage | Plain stage with metal and glass stage inserts |
Stage size | 200x239mm |
Stand type | Inverted |
Standard contrast technique | Brightfield, phase contrast |
Transformer | External |
Dimensions LxWxH | 7x24x20″ |
Weight Net | 27lbs |
Power | 120v |
Included
Included
Included with the Motic AE2000
Motic Microscope | CAT# AE2000 Inverted Phase Contrast | MSPR: $3693.00
Trinocular Head
10x Eyepieces – N-WF10X/20
Objectives
4x/0.1 Ph0
10x/0.25 ph1
20x/0.3 ph1
Phase Ring Slider with Ph0, Ph1
Condenser – 0.3
Halogen Lamp
120V Power Cord (2A)
30-Day Warranty
Notes
Notes
Technical Notes
This microscope has been fully inspected and the optics are clear. It is operating without issue and is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video
Motic Microscope AE2000 Video
Motic AE2000 Inverted Microscope Video ID 26183
