MTI Tube Furnace GSL 1600X
The MTI GSL-1600X is a High Temperature, Single Zone small Tube Furnace with a compact footprint used to sinter all types of new material samples under vacuum or gas conditions. This benchtop furnace requires tubes and vacuum flanges to reach temperatures up to 1600C, and has a heating zone of 6”. Users can set their desired temperature from the precision control center at the base as well as a temperature profile with up to 30 segments. This electric tubular furnace can be placed into a glove box to process material in various atmospheres. The maximum temperature is reached in under an hour, with heating and cooling rates at under 5°C a min above 1200°C or at 10°C /min under 1200°C.
Specifications
Specifications
MTI GSL-1600X Specifications:
| Working Temp | 1600 °C Max. (< 1 hr) <1500 °C Continuous |
| Heating Rates | < 5°C/min |
| Cooling Rates | < 5°C/min |
| Heating Zone | 6″ L Total 3.1″ L @ +/-1°C |
| Heating Element | SiC |
| Dimensions | 38x19x28” |
| Weight | 210 lbs |
| Power | 220VAC (30 Amps) 50/60 Hz |
Included
Included
Included with this Tube Furnace
MTI High Temp Laboratory Furnace | GSL 1600X
208/230V Power Cord (30A)
30-Day Warranty
Notes
Notes
Technical Notes
This laboratory tube furnace has been fully inspected and is ready to ship. Please note customers will need to add their own heating rods. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

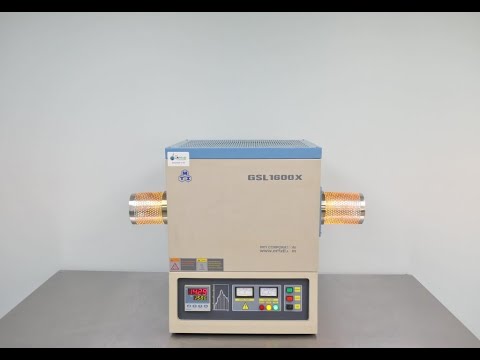

MTI High Temp Furnace Video
MTI High Temp Laboratory Furnace GSL 1600X ID 16185
