Description
Description
Thermo Scientific Nanodrop One Spectrophotometer
The Nanodrop OneC Spectrophotometer provides microvolume, UV-Vis reading, and innovative sample intelligence technology. This standalone UV-Vis Spectrophotometer helps quantify and qualify DNA, RNA, and protein samples using a scant 1-2 µL, saving you costs downstream. The Nanodrop One C has a more comprehensive dynamic range for highly concentrated samples (dsDNA at 27,500 ng/µL) and features a position for both pedestal and a cuvette, with temperature control and stirring, giving users the best flexibility. The broad spectral range of this UV-vis spectrophotometer, from 190 to 850 nm, means it’s ideal for sample types such as peptides, DNA, RNA, Toxicology Assays, gold nanoparticles, and optical density measurements.
The Nanodrop One C Spectrophotometer features a high-resolution, 7-inch touchscreen interface that helps guide users through setups, with an integrated learning center, and provides instant feedback on sample quality. The spectrophotometer’s integrated Android tablet allows for seamless data transfer via wireless Ethernet or USB without the need for a separate computer.
This Nanodrop Onec spectrophotometer comes equipped with Acclaro Technology, which identifies contaminants early and helps to save days of troubleshooting and verifying samples in seconds. In addition, the Nanodrop One has a powerful auto-range path length finder for accurate measurements without diluting. Data can be viewed, organized, and shared to a PC or a printer or viewed 24/7 from anywhere on any smart device using the innovative Nanodrop App or through connected Thermo Fisher Cloud Accounts.
Specifications
Specifications
Thermo Scientific Nanodrop One Spectrophotometer Specifications:
| Lamp | Xenon flash lamp |
| Wavelength Accuracy | ±1 nm |
| Wavelength Range | 190–850 nm |
| Concentration | Maximum, dsDNA: Pedestal: 27,500 ng/µL , BSA (IgG): Pedestal: 820 (400) mg/mL |
| Connections | Three USB-A ports, Ethernet, Bluetooth™ and Wi-Fi |
| Detection Range | dsDNA: Pedestal: 2.0 ng/µL
BSA (IgG): Pedestal: 0.06 (0.03) mg/mL |
| Detector Type | 2048-element CMOS linear image sensor |
| Measurement Time | Measurement and Data Processing Time 8 seconds |
| Pathlength (Metric) | 0.030 to 1.0 mm auto-ranging |
| Photometric Accuracy Instrument | 3% at 0.97 A, 302 nm, (Absorbance expressed at Abs/mm at 25°C) |
| Photometric Range | 10 mm equivalent:
Pedestal: 0–550 A |
| Repeatability | Measurement repeatability: Typical: 0.002 A (1.0 mm path) or 1%CV, whichever is greater (SD of 10 individual measurements at 0.97 A) |
| Sample Volume (Metric) | Minimum 1µL |
| Spectral Bandwidth | 1.8 nm (FWHM at Hg 254 nm) |
| Dimensions (L x W x H) | 17x12x17″ |
| Weight | 15 lbs |
| Power | Operating: 12–18 W, Standby: 5 W, 12V (DC) |
Included
Included
Included with this Nanodrop Spectrophotometer
Thermo NanoDrop One | CAT# ND-ONE-C | MSRP: $17,827.00
Cuvette Sample Port Installed
Operator’s Guide
Validation Report
115V Power Cord
30-Day Warranty
Please Note: The system has been fully validated by our service team and comes with a clean bill of health.
Notes
Notes
Technical Notes
This Thermo NanoDrop One has been fully inspected and has a clean bill of health. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

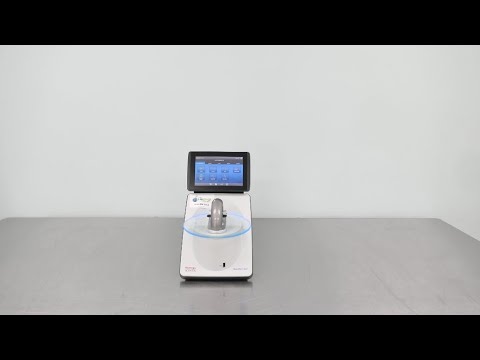

Thermo Scientific Nanodrop One Spectrophotometer Video
NanoDrop One C Spectrophotometer ID 25299
