New Era Pump Syringe Pump NE300
The New Era Pump Syringe Pump System is the economical choice with the features that you need and none that you don’t want to pay for. The NE300 syringe pump laboratory system operates in 3 quick easy steps. All the user needs to do is set the syringe diameter then set the infusion rate and start the pump. Selectable infusion rate units include mL/hr, µL/hr, mL/min, µL/min. The pump holds 1 syringe ranging from micro-liters up to 60 ml. The syringe infusion pump’s easy to use keypad interface that sets the diameter and pumping rates which pump continuously until the user stops. This syringe pump displays the total dispensed volume in Ml or Ul units. New Era designed this just Infusion Pump system with space-saving intentions which won’t take up unnecessary space on your benchtop. This syringe pump reproduces precise flow rates again and again eliminating human error in your tests. Don’t worry about power failures ruining your experiment as it continues pumping after it’s reset.
Specifications
Specifications
Specifications of syringe pump:
| Syringe sizes | Up to 60 mL |
| Number of syringes | 1 |
| Accuracy | Within +/- 1% over length of syringe,exclusive of syringe variations. |
| Reproducibility | +/- 0.1% |
| Maximum speed | 3.7742 cm/min |
| Minimum speed | 0.004205 cm/hr |
| Maximum pumping rate | 1257 mL/hr with a B-D 60 mL syringe |
| Minimum pumping rate | 0.73 µL /hr with a B-D 1 mL syringe |
| Maximum force | 35 lbs. at minimum speed, 18 lbs. at maximum speed |
| Syringe inside diameter range | 0.100 to 50.00 mm |
| Motor type | Step motor |
| Motor steps per revolution | 400 |
| Micro-stepping | 1/8 to 1/2 depending on motor speed |
| Advance per step | 0.2126 µm to 0.8504 µm depending on motor speed |
| Motor to drive screw ratio | 15/28 |
| Drive screw pitch | 20 revolutions/” |
| Power connector | 2.1 mm, center positive, DC |
| Voltage at power connector | 12V DC |
| Amperage | 750 mA maximum |
| Dimensions | 9 x 6 x 5” |
| Weight | 4lbs |
| Power | 11VDC, 0.75A, |
Included
Included
Included with syringe infusion pump:
- New Era Syringe Pump| CAT# NE300
- Pump Head
- 120V Power Cord
- 30-Day Warranty
Notes
Notes
Notes on New Era syringe pump
This infusion pump has been fully tested by our service team with a clean bill of health.
Video
Video

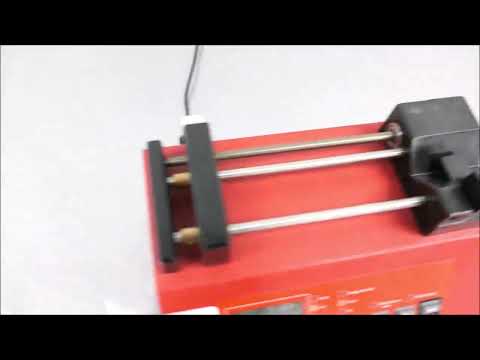

Video of New Era pump system
New Era Pump Syringe Pump NE300 ID 15829
