New Era Syringe Pump 1000

Availability: Out of stock SKU: 15482-15484 Category:

Description

New Era Syringe Pump 1000

The New Era Syringe Pump NE-1000 is the economical choice with the features that you need and none that you don’t want to pay for. The NE1000 operates in 3 quick easy steps. All the user needs to do is set the diameter then set the infusion rate and start the pump. The pump holds 1 syringe ranging from micro-liters up to 60 ml. It’s easy to use keypad interface that sets the diameter and pumping rates which pump continuously until the user stops. Infusion rates for this new era syringe pump are from 0.73 µL/hr (1 mL syringe) to 2100 mL/hr (60 mL syringe)

This syringe infusion pump displays the total dispensed volume in Ml or Ul units. New Era designed this unit with space-saving intentions which won’t take up unnecessary space on your benchtop. This pump system reproduces precise flow rates again and again eliminating human error in your tests. Don’t worry about power failures ruining your experiment as it continues pumping after it’s reset. The onboard microprocessor control will hold up to 41 pumping phases that will change the pumping rates, set dispensing volumes, insert pauses, and more. The step motor can also accommodate up to 400 steps per revolution.

Specifications

New Era Syringe Pump 1000 Specifications:

Syringe Size up to 60ml
Motor Step
Motor Steps per revolution 400
Microstepping 1/8 to 1/2 depending on motor speed
Advance per step 0.2126 um to 0.8504 um depending on motor speed
Maximum speed 5.1005 cm/min
Minimum speed 0.004205 cm/hr
Maximum pumping rate 1699 mL/hr with a B-D 60 mL syringe
Minimum pumping rate 0.73 µL/hr with a B-D 1 mL syringe
Maximum force 35 lbs. at minimum speed, 18 lbs. at maximum speed
Number of Program Phases 41
Dimensions 9x6x5”
Weight 4lbs
Power 120v, 12VDC, 0.75A

Included

Included with this syringe pump

  • New Era Syringe Pump 1000 | Single Channel | MSRP: $1195.00
  • User Manual
  • 120V Power Cord (2A)
  • 30-Day Warranty

Notes

Technical Notes

This syringe infusion pump has been fully inspected and is ready to ship. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

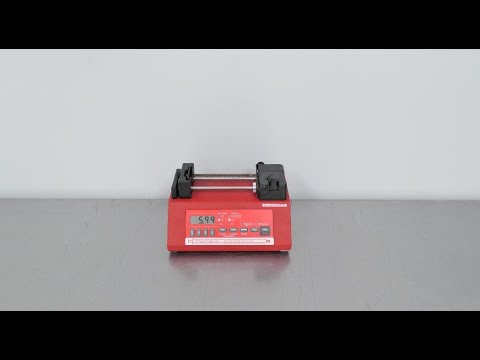

New Era Syringe Pump 1000 Video

New Era Syringe Pump 1000 ID 15482
