Nikon Eclipse E200 Upright Microscope

Availability: Out of stock SKU: 4065 Category:

Description

Nikon Eclipse E200 Microscope

The Nikon Eclipse E200 Microscope provides you with sharp, crystal clear images with an easy to operate, comfortable to use, and adaptable instrument. This laboratory microscope combines CF160 optics and infinity optics for longer working distances, flat images without curvature in the field of view, and higher numerical apertures. This binocular head microscope is ergonomically designed with the user in mind, including an adjustable eyepoint height, tilt-able eyepiece, and adjustable eyepiece length to suit each individual user’s comfort, and controls placed for easy one-handed operation.

The reverse nosepiece of this Nikon Eclipse E200 leaves you with more room at the front of the stage for faster, easy slide changes. The refocusing stage of this upright microscope allows users to quickly change specimens by pressing down on the stage to lower it, then once in place, when the hand is released, the stage automatically returns to the exact position it was in before.

The Nikon Eclipse E200 Microscope is an ideal choice for humid environments thanks to the innovative anti-mold body paint and sealing agent inside so it’s built to resist mold growth. The overall design of this lab microscope is constructed as one piece from arm to base, with a bottom located stage mechanism and wide bottom, to give you a rigid, vibration-resistant view. The low-profile design and innovative refocusing stage, smooth belt drive mechanism, upper limit stopper of the Nikon e200 all contribute to a pleasant and easy-to-use microscope.

Specifications

Nikon Eclipse E200 Microscope Specifications:

Parfocal distance:  60mm
Magnification 40–1500X for observation

8–500X for 35mm photomicrography

Nosepiece Quadruple nosepiece reversed type

Coarse/fine Fine: 0.2mm per rotation,

Coarse: 37.7mm per focusing rotation, Minimum reading: 2 microns on the left-side fine control knob, Coarse motion torque adjustable, Refocusing system incorporated in stage, Stage handle and focusing knob are at equal distance from the operator

Stage Rectangular 216 x 150 mm surface stage mounted on the main body. Cross travel 78 x 54 mm using low-positioned X/Y coaxial control knob
Dimensions 14 x 9 x 17 “
Weight 17lbs
Power 100/110/120V 0.8a, 50/60Hz

Included

Included with Nikon Eclipse E200 Microscope

  • Nikon Eclipse E200 Microscope
  • E Plan 4x, 10x, 40x Infinity Objectives
  • 10×20 CFI Binocular Eyepieces
  • 115V Power Cord
  • 30-Day Warranty

Notes

Technical Notes

This Nikon Eclipse E200 Microscope has been fully inspected and the optics are clear. All of our lab equipment comes backed with our standard warranty. Should you have any questions, please don’t hesitate to contact us.

Video

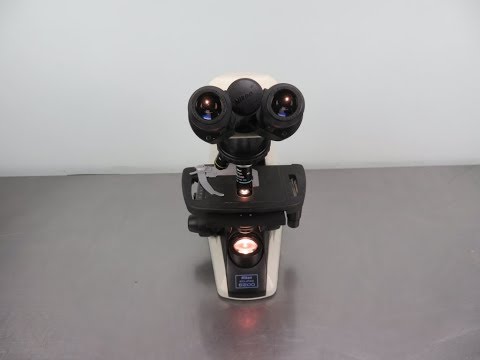

Nikon Eclipse E200 Microscope Video
